Connector End View (C921) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C921 | INLINE | 14A00514334 | See Below | |||||

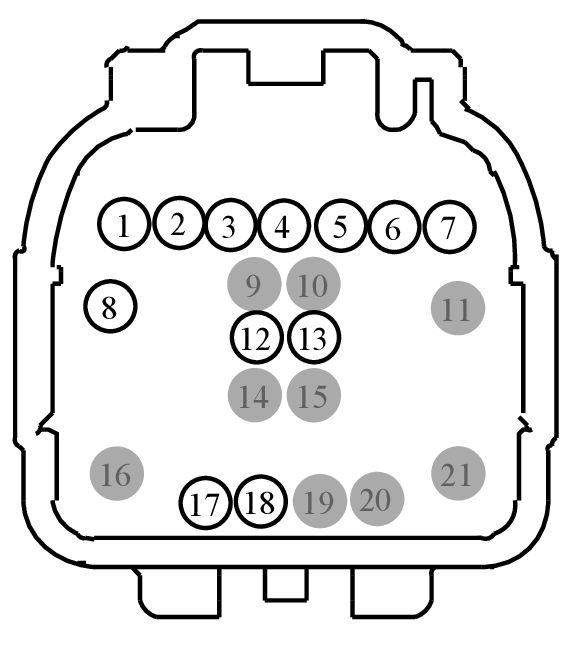

MALE
Harness
14A005

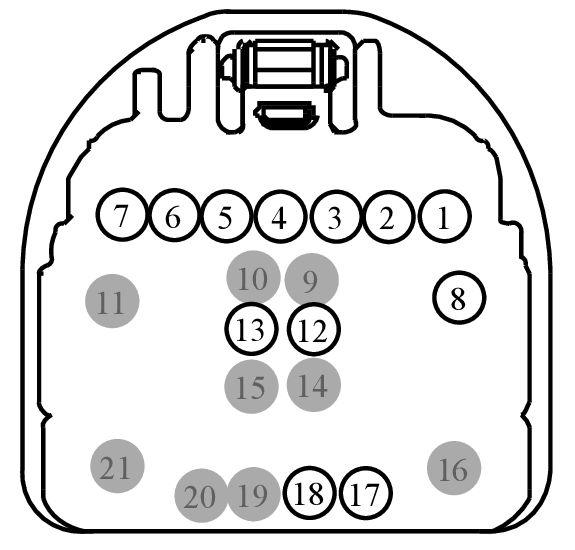

FEMALE
Harness
14334
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AAB | Not Available | |
| 9U5T-14474-XB | Not Available | |
| DU5T-14421-FA | EU2Z-14421-BA | 0.64 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS10 (GN-BN) | 22 | DU5T-14421-FA | |||
| 2 | VLN33 (GY-VT) | 22 | DU5T-14421-FA | |||
| 3 | CPW58 (YE-OG) | 22 | DU5T-14421-FA | |||
| 4 | CPW59 (VT-BN) | 22 | DU5T-14421-FA | |||
| 5 | VDN05 (YE-GY) | 22 | DU5T-14421-FA | |||
| 6 | CBP23 (BN-YE) | 22 | DU5T-14421-FA | |||
| 7 | CBB96 (BU-GN) | 22 | DU5T-14421-FA | |||
| 8 | CLN09 (YE-GN) | 18 | 97BG-14421-AAB | |||
| 9 | * | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | GD348 (BK-YE) | 22 | DU5T-14421-FA | |||
| 13 | GD348 (BK-YE) | 22 | DU5T-14421-FA | |||
| 14 | * | * | N/A | |||
| 15 | * | * | N/A | |||
| 16 | * | * | N/A | |||
| 17 | SBP11 (BU-RD) | 22 | DU5T-14421-FA | |||
| 18 | VDN03 (GY-VT) | 22 | DU5T-14421-FA | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS10 (GN-BN) | 22 | 8U5T-14474-BB | |||
| 2 | VLN33 (GY-VT) | 22 | 8U5T-14474-BB | |||
| 3 | CPW58 (YE) | 26 | 9U5T-14474-XB | |||
| 4 | CPW59 (VT) | 26 | 9U5T-14474-XB | |||
| 5 | VDN05 (GY) | 26 | 9U5T-14474-XB | |||
| 6 | CBP23 (BN-YE) | 22 | 8U5T-14474-BB | |||
| 7 | CBB96 (BU-GN) | 22 | 8U5T-14474-BB | |||
| 8 | CLN09 (YE-GN) | 20 | 7C3T-14474-DA | |||
| 9 | * | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | GD348 (BK-YE) | 22 | 8U5T-14474-BB | |||
| 13 | GD348 (BK-YE) | 22 | 8U5T-14474-BB | |||
| 14 | * | * | N/A | |||
| 15 | * | * | N/A | |||
| 16 | * | * | N/A | |||
| 17 | SBP11 (BU-RD) | 22 | 8U5T-14474-BB | |||
| 18 | VDN03 (GY-VT) | 22 | 8U5T-14474-BB | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1561
Service Part Number:
JU2Z-14S411-ARA
Gauge:
14 16 20
Pin material:
Tin
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1559
Service Part Number:
FU2Z-14S411-RB
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
