Connector End View (C919) - INLINE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C919	INLINE	14A41114334/14A411			See Below

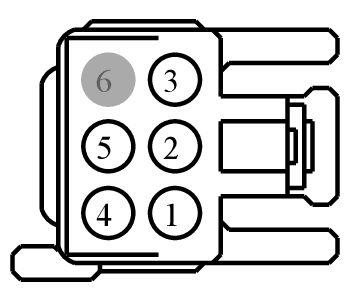

MALE

Harness

14A411

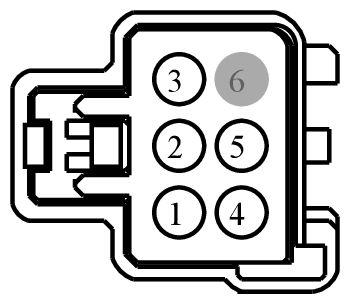

FEMALE

Harness

14334/14A411

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-AAB	Not Available
97BG-14474-AAB	DU2Z-14474-DA	1.5
DU5T-14421-EA	EU2Z-14421-CA	1.5

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CPR40 (YE-OG)	22	97BG-14421-AAB
2	CPR86 (BN)	26	DU5T-14421-EA
3	CPR31 (VT-BN)	22	97BG-14421-AAB
4	CPR38 (WH-BU)	22	97BG-14421-AAB
5	CPR85 (GN)	26	DU5T-14421-EA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CPR40 (YE-OG)	22	97BG-14474-AAB
1	CPR40 (YE-OG)	22	97BG-14421-AAB
2	CPR86 (GY-BN)	22	97BG-14474-AAB
2	CPR86 (GY-BN)	22	97BG-14421-AAB
3	CPR31 (VT-BN)	22	97BG-14474-AAB
3	CPR31 (VT-BN)	22	97BG-14421-AAB
4	CPR38 (WH-BU)	22	97BG-14421-AAB
4	CPR38 (WH-BU)	22	97BG-14474-AAB
5	CPR85 (GN-WH)	22	97BG-14474-AAB
5	CPR85 (GN-WH)	22	97BG-14421-AAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1299

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-NBB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Element - Heated Seat
Inverter - DC to AC
Lamp - CHMSL (Center High Mount Stop Lamp)
Lamp - Courtesy - Footwell
Lamp - License
Lamp - Park/Turn/Stop
Lamp - Top Finish Panel
Mating Connector WPT-962
Motor - Adjustable Pedal
Switch - Gear Shift Select/Neutral Safety
Switch - Multifunction

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Mating Connector WPT-1299
Switch - Gear Shift Select/Neutral Safety
Switch - Overdrive Cancel
Switch - Power Sliding Door
