Connector End View (C913) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

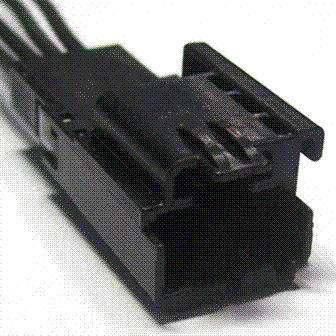

| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C913 | INLINE | 14A00514335 | See Below | |||||

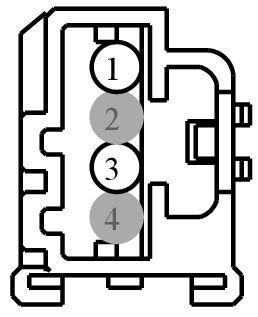

MALE
Harness
14A005
FEMALE
Harness
14335
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14421-DB | EU2Z-14421-AA | 0.64 |
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS30 (VT-WH) | 18 | DU5T-14421-DB | |||
| 2 | * | * | N/A | |||
| 3 | GD347 (BK-VT) | 18 | DU5T-14421-DB | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS30 (VT-WH) | 18 | 3F2T-14474-RA | |||
| 2 | * | * | N/A | |||
| 3 | GD347 (BK-VT) | 18 | 3F2T-14474-RA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1041
Service Part Number:
9U2Z-14S411-AJA
Gauge:
18
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Actuator - Door Lock - Decklid/Liftgate
- Switch - Deck Lid / Lift Gate Ajar
Pigtail Kit Part Number WPT-982
Service Part Number:
6U2Z-14S411-JB
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Module - Auto Lamps
- Module - Front Interface
- Sensor - EATC In Car Temperature
- Sensor - Sunload
- Solenoid - Brake Shift Park Interlock
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
