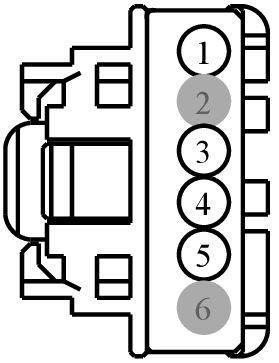

Connector End View (C901) - DOME LAMP
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C901 | DOME LAMP | 14334 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLN09 (YE-GN) | 18 | RELAY - BATTERY SAVER (E. G. SWITCH OFF INTERIOR LIGHTING) | 3F2T-14474-RA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 3F2T-14474-SA | ||||
| 4 | VLN33 (GY-VT) | 22 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | 3F2T-14474-SA | ||||
| 5 | GD348 (BK-YE) | 18 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | 3F2T-14474-RA | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1249
Service Part Number:
3U2Z-14S411-BYAC
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Lamp - Dome
- Lamp - Storage Compartment - Cargo
- Motor - Heater A/C Mode Door
- Motor - Heater/AC Blend Door
- Motor - Heater/AC Inlet Door
- Switch - Hazard Warning
- Switch - Heated Seat
- Switch - Heater A/C Blower (Rear)
- Switch - Speed Control
