Connector End View (C900) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C900 | INLINE | 1433414334 | Not Available | |||||

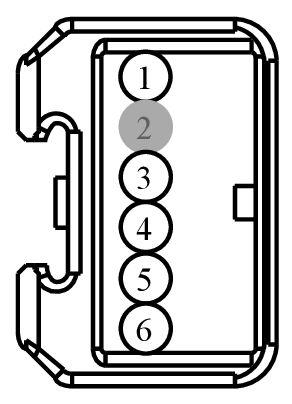

MALE
Harness
14334

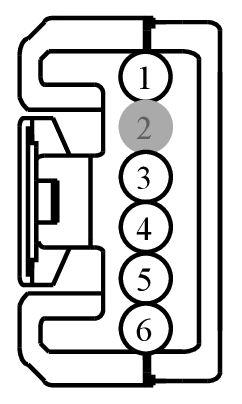

FEMALE
Harness
14334
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-YA | Not Available | |
| BU5T-14421-ZA | Not Available | |
| DU5T-14421-GA | Not Available |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RRB08 (BN-VT) | 18 | BU5T-14421-YA | |||
| 2 | * | * | N/A | |||
| 3 | CRB08 (BU-GY) | 18 | BU5T-14421-YA | |||
| 4 | CBB96 (BU-GN) | 22 | BU5T-14421-ZA | |||
| 5 | VDN05 (GY) | 26 | DU5T-14421-GA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RRB08 (BN-VT) | 20 | N/A | |||
| 2 | * | * | N/A | |||
| 3 | CRB08 (BU-GY) | 20 | N/A | |||
| 4 | CBB96 (BU-GN) | 22 | N/A | |||
| 5 | VDN05 (GY) | 22 | N/A | |||
