Connector End View (C856) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C856 | INLINE | 14A00514632 | Not Available | |||||

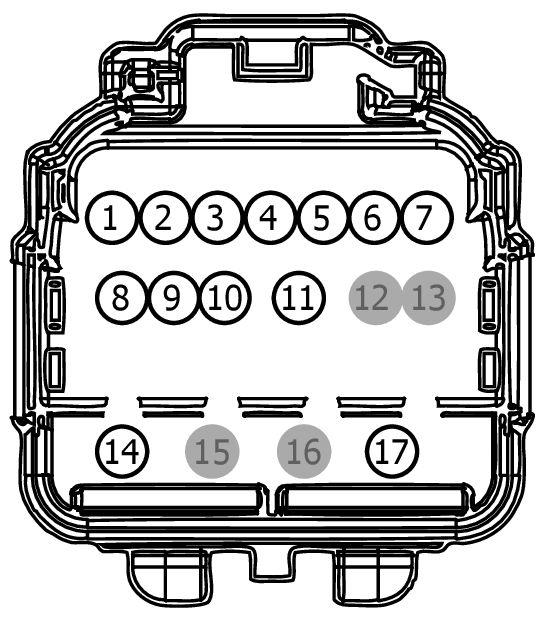

MALE
Harness
14A005

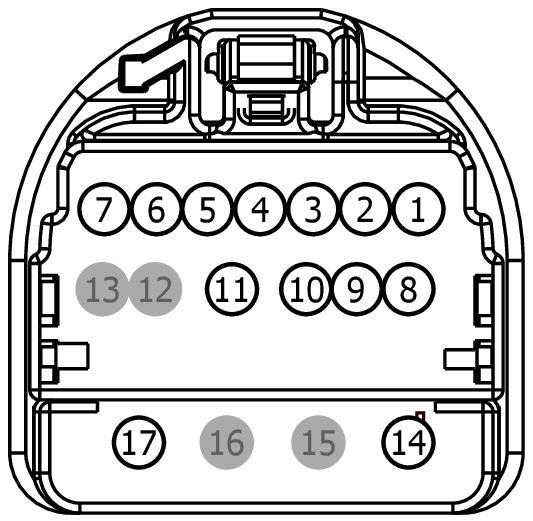

FEMALE
Harness
14632
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| DU5T-14421-FA | EU2Z-14421-BA | 0.64 |
| EU5T-14421-BA | EU2Z-14421-DA | 2.8 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| 9U5T-14421-CA | EU2Z-14421-BA | 0.64 |
| F8VB-14474-AA | EU2Z-14474-AB | 2.8 |
| DU5T-14474-HBB | Not Available | |
| EU5T-14421-HA | EU2Z-14421-DA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR122 (WH-OG) | 18 | 9U5T-14421-BA | |||
| 2 | RR122 (BN) | 18 | 9U5T-14421-BA | |||
| 3 | CPL39 (YE) | 22 | DU5T-14421-FA | |||
| 4 | CPW18 (GY-VT) | 22 | DU5T-14421-FA | |||
| 5 | CPW17 (BN-GN) | 22 | DU5T-14421-FA | |||
| 6 | VME12 (BN-WH) | 20 | 9U5T-14421-CA | |||
| 7 | RME12 (BN-BU) | 20 | 9U5T-14421-CA | |||
| 8 | CPW14 (VT-WH) | 22 | 9U5T-14421-BA | |||
| 9 | CR179 (BU) | 18 | 9U5T-14421-BA | |||
| 10 | RR179 (GY-BU) | 18 | 9U5T-14421-BA | |||
| 11 | GD348 (BK-VT) | 22 | EU5T-14421-HA | |||
| 12 | * | * | N/A | |||
| 13 | * | * | N/A | |||
| 14 | CBP38 (GY-BU) | 10 | EU5T-14421-BA | |||
| 15 | * | * | N/A | |||
| 16 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR122 (WH-OG) | 18 | 8U5T-14474-BB | |||
| 2 | RR122 (BN) | 18 | 8U5T-14474-BB | |||
| 3 | CPL39 (YE) | 22 | 8U5T-14474-BB | |||
| 4 | CPW18 (GY-VT) | 22 | 8U5T-14474-BB | |||
| 5 | CPW17 (BN-GN) | 22 | 8U5T-14474-BB | |||
| 6 | VME12 (BN-WH) | 18 | 8U5T-14474-BB | |||
| 7 | RME12 (BN-BU) | 18 | 8U5T-14474-BB | |||
| 8 | CPW14 (VT-WH) | 22 | 8U5T-14474-BB | |||
| 9 | CR179 (BU) | 18 | 8U5T-14474-BB | |||
| 10 | RR179 (GY-BU) | 18 | 8U5T-14474-BB | |||
| 11 | GD348 (BK-YE) | 22 | DU5T-14474-HBB | |||
| 12 | * | * | N/A | |||
| 13 | * | * | N/A | |||
| 14 | CBP38 (GY-BU) | 10 | F8VB-14474-AA | |||
| 15 | * | * | N/A | |||
| 16 | * | * | N/A | |||
