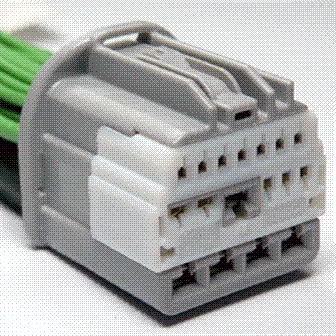

Connector End View (C810) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C810 | INLINE | 1463214A005 | See Below | |||||

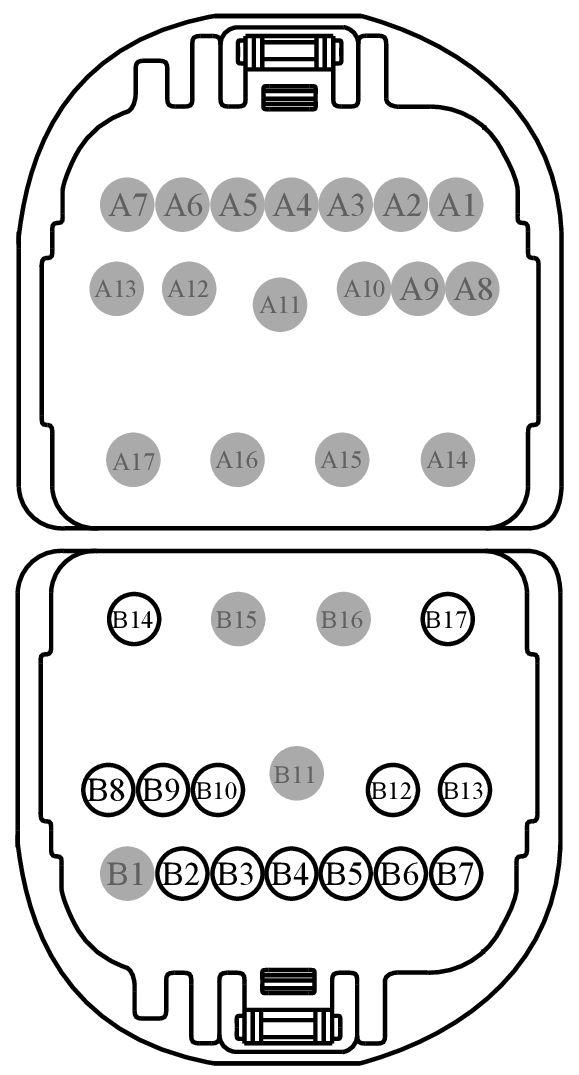

MALE
Harness
14632

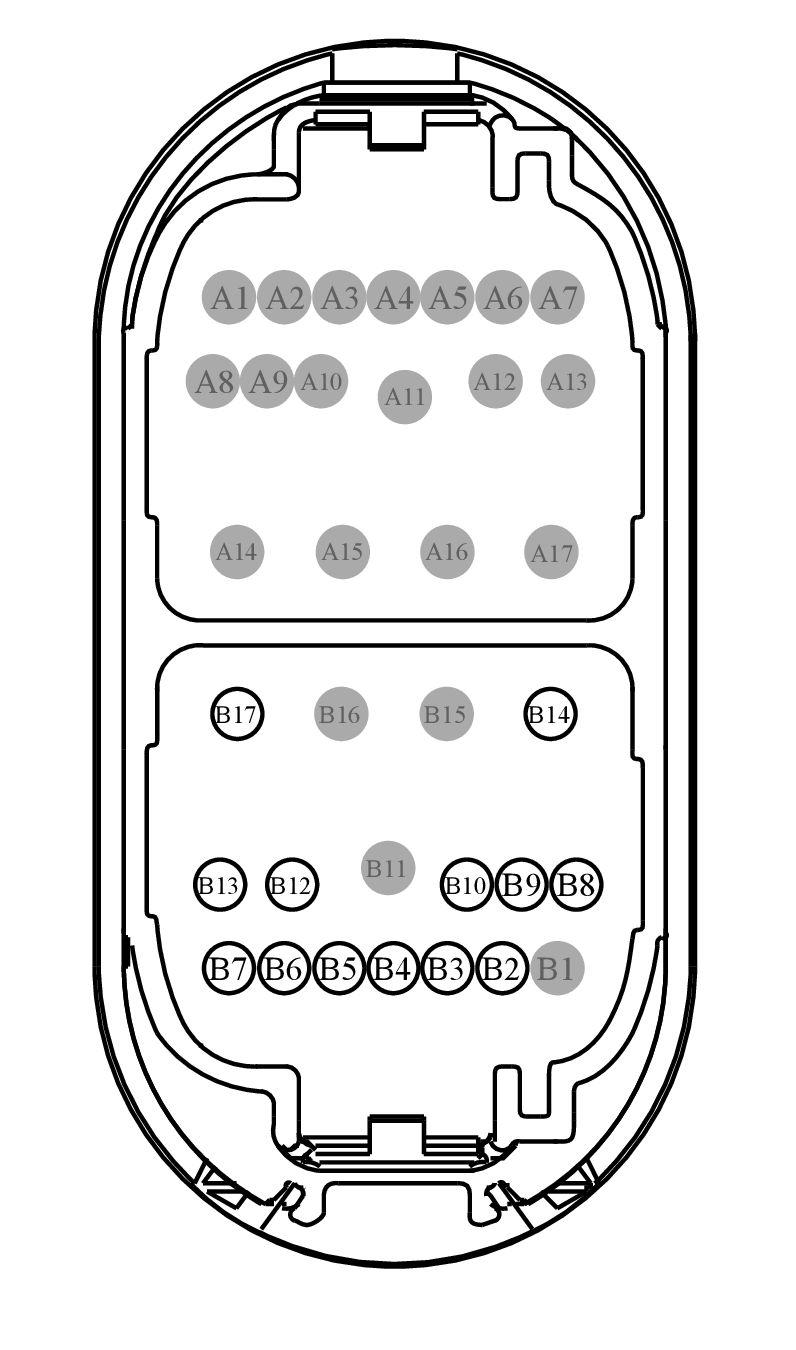

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ABB | Not Available | |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| 8U5T-14421-CA | EU2Z-14421-DA | 2.8 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| 8U5T-14474-CB | DU2Z-14474-CA | 0.64 |
| 7C3T-14474-EA | DU2Z-14474-DA | 1.5 |
| EU5T-14474-FA | EU2Z-14474-AA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| A1 | * | * | N/A | |||
| A2 | * | * | N/A | |||
| A3 | * | * | N/A | |||
| A4 | * | * | N/A | |||
| A5 | * | * | N/A | |||
| A6 | * | * | N/A | |||
| A7 | * | * | N/A | |||
| A8 | * | * | N/A | |||
| A9 | * | * | N/A | |||
| A10 | * | * | N/A | |||
| A11 | * | * | N/A | |||
| A12 | * | * | N/A | |||
| A13 | * | * | N/A | |||
| A14 | * | * | N/A | |||
| A15 | * | * | N/A | |||
| A16 | * | * | N/A | |||
| A17 | * | * | N/A | |||
| B1 | * | * | N/A | |||
| B2 | GD348 (BK-YE) | 22 | 9U5T-14421-BA | |||
| B3 | CPL39 (YE) | 22 | 9U5T-14421-BA | |||
| B4 | CPW18 (GY-VT) | 22 | 9U5T-14421-BA | |||
| B5 | CPW17 (BN-GN) | 22 | 9U5T-14421-BA | |||
| B6 | VME12 (BN-WH) | 18 | 9U5T-14421-BA | |||
| B7 | RME12 (BN-BU) | 18 | 9U5T-14421-BA | |||
| B8 | CPW14 (VT-WH) | 22 | 9U5T-14421-BA | |||
| B9 | CBX07 (GN-RD) | 22 | 9U5T-14421-BA | |||
| B10 | VDN13 (BN) | 22 | 9U5T-14421-BA | |||
| B11 | * | * | N/A | |||
| B12 | CPL13 (BN-GN) | 18 | 97BG-14421-ABB | |||
| B13 | CPL11 (GY-BN) | 18 | 97BG-14421-ABB | |||
| B14 | CBP38 (GY-BU) | 10 | 8U5T-14421-CA | |||
| B15 | * | * | N/A | |||
| B16 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| A1 | * | * | N/A | |||
| A2 | * | * | N/A | |||
| A3 | * | * | N/A | |||
| A4 | * | * | N/A | |||
| A5 | * | * | N/A | |||
| A6 | * | * | N/A | |||
| A7 | * | * | N/A | |||
| A8 | * | * | N/A | |||
| A9 | * | * | N/A | |||
| A10 | * | * | N/A | |||
| A11 | * | * | N/A | |||
| A12 | * | * | N/A | |||
| A13 | * | * | N/A | |||
| A14 | * | * | N/A | |||
| A15 | * | * | N/A | |||
| A16 | * | * | N/A | |||
| A17 | * | * | N/A | |||
| B1 | * | * | N/A | |||
| B2 | GD348 (BK-YE) | 22 | 8U5T-14474-BB | |||
| B3 | CPL39 (YE) | 22 | 8U5T-14474-BB | |||
| B4 | CPW18 (GY-VT) | 22 | 8U5T-14474-BB | |||
| B5 | CPW17 (BN-GN) | 22 | 8U5T-14474-BB | |||
| B6 | VME12 (BN-WH) | 20 | 8U5T-14474-CB | |||
| B7 | RME12 (BN-BU) | 20 | 8U5T-14474-CB | |||
| B8 | CPW14 (VT-WH) | 22 | 8U5T-14474-BB | |||
| B9 | CBX07 (GN-RD) | 22 | 8U5T-14474-BB | |||
| B10 | VDN13 (BN) | 22 | 8U5T-14474-BB | |||
| B11 | * | * | N/A | |||
| B12 | CPL13 (BN-GN) | 18 | 7C3T-14474-EA | |||
| B13 | CPL11 (GY-BN) | 18 | 7C3T-14474-EA | |||
| B14 | CBP38 (GY-BU) | 10 | EU5T-14474-FA | |||
| B15 | * | * | N/A | |||
| B16 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1576
Service Part Number:
KU2Z-14S411-CA
Gauge:
14 16 20
Pin material:
Tin & Tin (greased)
Cavities:
34
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1519
Service Part Number:
JU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
17
Vehicle Uses:
- Connector - Inline
