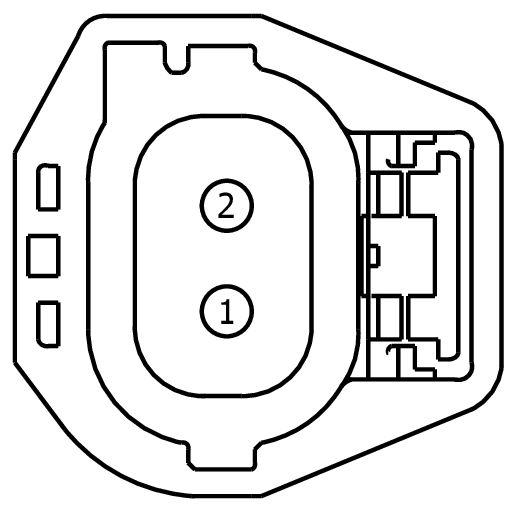

Connector End View (C803) - POWER WINDOW MOTOR, RIGHT REAR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C803 | POWER WINDOW MOTOR, RIGHT REAR | 14632 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW23 (GY) | 10 | SWITCH - POWER WINDOW REAR RIGHT # DOWN | 97BG-14474-BFA | ||||
| 2 | CPW24 (WH-VT) | 10 | SWITCH - POWER WINDOW REAR RIGHT # UP | 97BG-14474-BFA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1336
Service Part Number:
DU2Z-14S411-KA
Gauge:
16
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Motor - Fuel Filler Door
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Rear
Pigtail Kit Part Number WPT-1496
Service Part Number:
DU2Z-14S411-KB
Gauge:
14
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Glow Plug
- Motor - Fuel Filler Door
- Motor - Power Slider
- Motor - Power Window - LH - Front
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Front
- Motor - Power Window - RH - Rear
