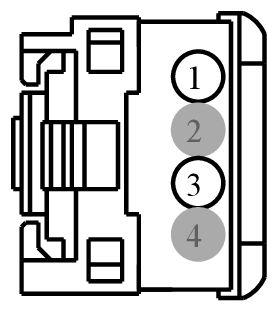

Connector End View (C650) - AMBIENT AIR TEMPERATURE (AAT) SENSOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C650 |
AMBIENT AIR TEMPERATURE (AAT) SENSOR |
14630 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DA |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VE750 (GN-BU) |
22 |
SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
9U5T-14474-DA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
RE407 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
9U5T-14474-DA |
| 4 |
* |
* |
Not Used |
N/A |
