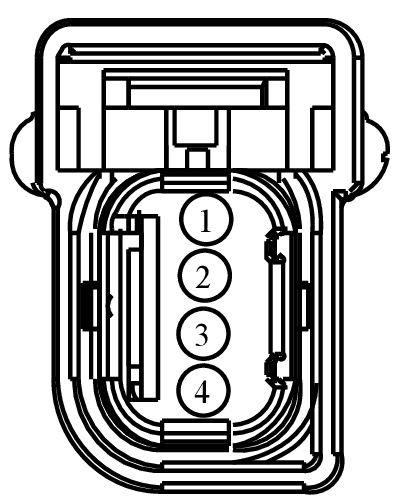

Connector End View (C634) - EXTERIOR DOOR HANDLE, RIGHT FRONT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C634 | EXTERIOR DOOR HANDLE, RIGHT FRONT | 14630 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VPK40 (WH-OG) | 22 | SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA | 8U5T-14474-BB | ||||
| 2 | VPK02 (VT-WH) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER + | 8U5T-14474-BB | ||||
| 3 | RPK02 (GY-YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER - | 8U5T-14474-BB | ||||
| 4 | RPK39 (VT-OG) | 22 | SENSOR - KEYLESS VEHICLE HANDLE | 8U5T-14474-BB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1568
Service Part Number:
FU2Z-14S411-ANB
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Switch - Keyless Door Handle
Pigtail Kit Part Number WPT-1443
Service Part Number:
FU2Z-14S411-ANA
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Lamp - Front Turn
- Lamp - Side Marker (Rear Fender)
- Switch - Keyless Door Handle
