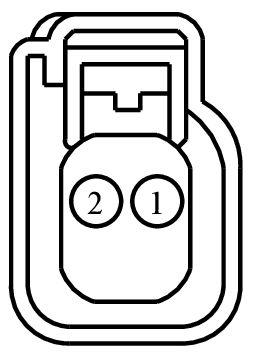

Connector End View (C603) - DOOR LOCK ACTUATOR, RIGHT FRONT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C603 | DOOR LOCK ACTUATOR, RIGHT FRONT | 14630 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPL11 (GY-BN) | 18 | CTRL MOD. - DOOR LOCK # ALL LOCK | 97BG-14474-AEA | ||||
| 2 | CPL13 (BN-GN) | 18 | CTRL MOD. - DOOR LOCK # ALL UNLOCK | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1052
Service Part Number:
3U2Z-14S411-JLB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- A/C Compressor Clutch
- Actuator - Door Lock
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - LH - Sliding Door
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Actuator - Door Lock - RH - Sliding Door
- Actuator - Liftgate Glass
- Lamp - Headlamp - Low Beam
- Lamp - License
- Lamp - Side Marker
- Motor - Power Window - LH - Rear
- Pump - Fuel (External)
- Sensor - Side Impact
- Solenoid - Brake Shift Park Interlock
- Speaker - Door (front)
- Speaker - Door (rear)
- Speaker - Front
- Speaker - Rear
- Speaker - Tweeter - LH - Front
- Speaker - Tweeter - LH - Rear
- Speaker - Tweeter - RH - Front
- Speaker - Tweeter - RH - Rear
