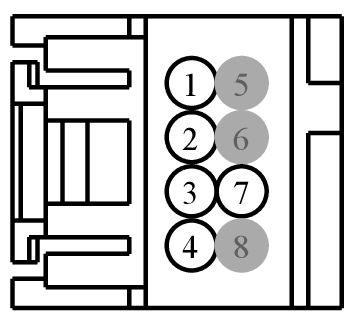

Connector End View (C577) - TELESCOPING EXTERIOR REAR VIEW MIRROR SWITCH
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C577 | TELESCOPING EXTERIOR REAR VIEW MIRROR SWITCH | BK | 14631 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RPW03 (BU-GN) | 22 | CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN | 3F2T-14474-SA | ||||
| 2 | CPL77 (BU-GY) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION | 3F2T-14474-SA | ||||
| 3 | CPM42 (YE-OG) | 22 | SWITCH - POWER MIRROR # LEFT (COMMON) MIRROR TELESCOPE OUT (IF PLUS) | 3F2T-14474-SA | ||||
| 4 | SBP08 (VT-RD) | 22 | FUSE - 8 OR CIRCUIT BREAKER | 3F2T-14474-SA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | CPM41 (VT) | 22 | SWITCH - POWER MIRROR # LEFT (COMMON) MIRROR TELESCOPE IN (IF PLUS) | 3F2T-14474-SA | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-991
Service Part Number:
3U2Z-14S411-LCB
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Switch - Ambient Lighting Dimmer
- Switch - Dimmer
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Message Center
- Switch - Power Window - Quarter Glass
