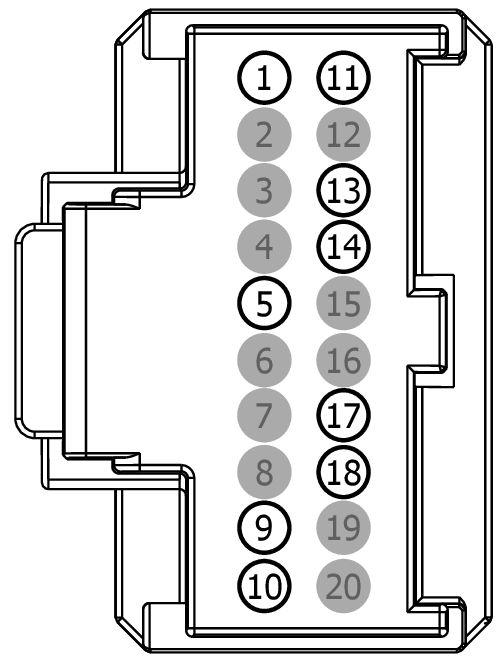

Connector End View (C535) - MASTER WINDOW CONTROL SWITCH

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C535	MASTER WINDOW CONTROL SWITCH	14631			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDN09 (WH-GN)	22	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE	9U5T-14474-DB
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CPW14 (VT-WH)	22	SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE)	9U5T-14474-DB
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	9U5T-14474-DB
10	SBP08 (VT-RD)	22	FUSE - 8 OR CIRCUIT BREAKER	9U5T-14474-DB
11	RPW03 (BU-GN)	22	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN	9U5T-14474-DB
12	*	*	Not Used	N/A
13	CPW18 (GY-VT)	22	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP	9U5T-14474-DB
14	CPW17 (BN-GN)	22	SENSOR - KEYLESS VEHICLE HANDLE	9U5T-14474-DB
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CPW15 (YE)	22	SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN	9U5T-14474-DB
18	CPW16 (BU-OG)	22	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP	9U5T-14474-DB
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1449

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ASA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Radio - Amplifier
