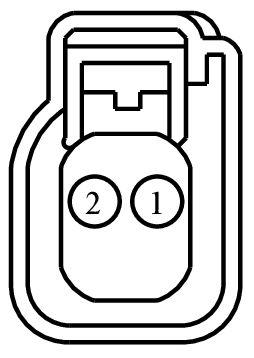

Connector End View (C526) - FRONT DOOR AJAR SWITCH LH
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C526 | FRONT DOOR AJAR SWITCH LH | 14631 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ADA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPL26 (GN-VT) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR | 97BG-14474-ADA | ||||
| 2 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | 97BG-14474-ADA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1243
Service Part Number:
3U2Z-14S411-RPC
Gauge:
16
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Rear
- Handle - Decklid
- Lamp - Headlamp - High/Low Beam
- Lamp - Headlamp - Low Beam
- Lamp - License
- Lamp - Rear Turn
- Lamp - Side Marker
- Sensor - Knock
- Sensor - Seat Track Position
- Sensor - Throttle Position
- Sensor - Turbine Shaft Speed
- Sensor - Water in Fuel
- Switch - Deck Lid / Lift Gate Ajar
- Switch - Door Ajar / Interior Lamp
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Stop Lamp
- Valve - Vapor Management
