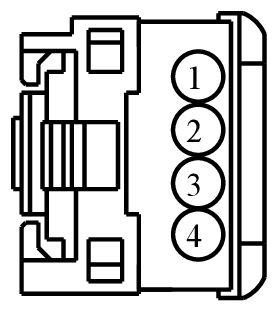

Connector End View (C505) - DOOR LOCK SWITCH, LEFT FRONT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C505 |
DOOR LOCK SWITCH, LEFT FRONT |
14631 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPL42 (GY-YE) |
22 |
CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - |
9U5T-14474-DB |
| 2 |
RPW03 (BU-GN) |
22 |
CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN |
9U5T-14474-DB |
| 3 |
CPL43 (VT-GY) |
22 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - |
9U5T-14474-DB |
| 4 |
CPL77 (BU-GY) |
22 |
CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + |
9U5T-14474-DB |
