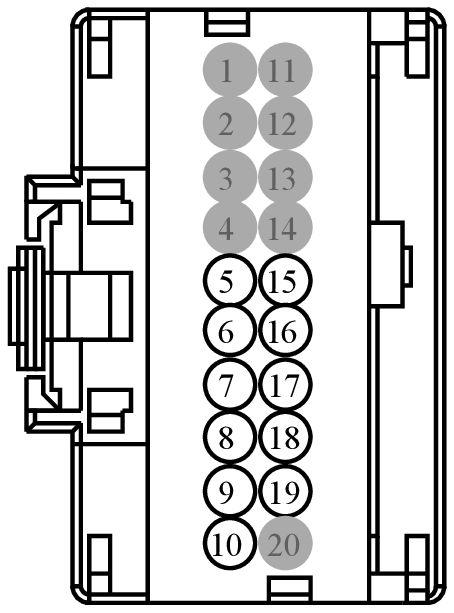

Connector End View (C501B) - DRIVER DOOR MODULE (DDM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C501B	DRIVER DOOR MODULE (DDM)	14631			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	LPM30 (GY-BU)	22	CTRL MOD. - SENSORS MIRROR POSITION (LEFT) +	8U5T-14474-BB
6	VPM35 (YE-BU)	22	SENSOR - LEFT MIRROR POSITION # HORIZONTAL	8U5T-14474-BB
7	CPM29 (GN)	22	CTRL MOD. - LEFT MIRROR UP	8U5T-14474-BB
8	CPM28 (BU-BN)	22	CTRL MOD. - LEFT MIRROR RIGHT	8U5T-14474-BB
9	CPM39 (GN-VT)	22	CTRL MOD. - LEFT MIRROR FOLD OUT (DRV)	8U5T-14474-BB
10	CLN31 (VT-GN)	22	CTRL MOD. - PUDDLE LAMP LEFT	8U5T-14474-BB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RRB06 (GY-VT)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER -	8U5T-14474-BB
16	VPM36 (BN-YE)	22	SENSOR - LEFT MIRROR POSITION # VERTICAL	8U5T-14474-BB
17	RPM05 (VT-GY)	22	CTRL MOD. - LEFT MIRROR RETURN	8U5T-14474-BB
18	CPM04 (VT-BN)	22	CTRL MOD. - LEFT MIRROR FOLD IN	8U5T-14474-BB
19	CRB06 (GN-WH)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER +	8U5T-14474-BB
20	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1542

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-YA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Control Head - Manual Climate
Module - Driver Door
Module - Electronic Automatic Temperature Control (EATC)
Module - Front Interface
Module - Passenger Door
