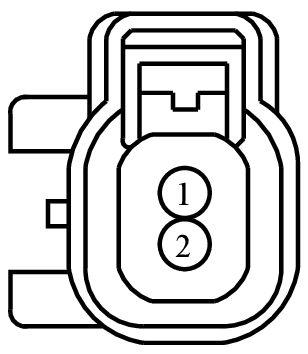

Connector End View (C495) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C495 | INLINE | 13A40915B484 | See Below | |||||
MALE
Harness
13A409
FEMALE
Harness
15B484
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ADA | Not Available | |
| 7C3T-14474-RA | Not Available |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD477 (BU-GY) | 18 | 97BG-14421-ADA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD477 (BU-GY) | 18 | 7C3T-14474-RA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1193
Service Part Number:
3U2Z-14S411-DCAB
Gauge:
16
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Element - Heated Seat
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Fog/Driving
- Lamp - Side Marker (Rear Fender)
- Mirror - Sideview
- Sensor - Crash (Engine Compartment)
- Speaker - Tweeter - LH - Front
- Speaker - Tweeter - RH - Front
Pigtail Kit Part Number WPT-984
Service Part Number:
3U2Z-14S411-BXAB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- A/C Compressor Clutch
- EGR Cooler Outlet
- Electronic Locking Differential
- Horn
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Rear Park
- Lamp - Reverse
- Lamp - Side Marker
- Motor - Adjustable Pedal
- Sensor - Adjustable Pedal
- Sensor - Brake Fluid Level
- Sensor - Cam Shaft Position
- Sensor - Cylinder Head Temperature
- Sensor - Exhaust Gas Temperature
- Sensor - Liftgate Obstacle
- Sensor - Oil Level
- Sensor - Output Shaft Speed
- Sensor - Speed
- Solenoid - Engine Variable Timing
- Speaker - Door
- Speaker - Front
- Speaker - Rear
- Speaker - Subwoofer
- Speaker - Tweeter - LH - Front
- Switch - A/C Compressor Clutch Cycling
- Switch - Backup Lamp
- Switch - Deck Lid / Hatch Release
- Switch - Deck Lid / Lift Gate Ajar
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Power Liftgate
- Switch - Reverse Park Aid
