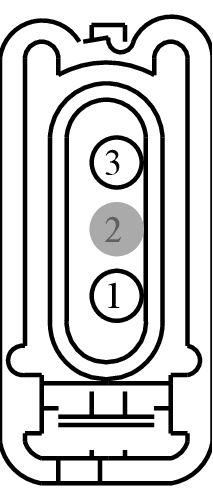

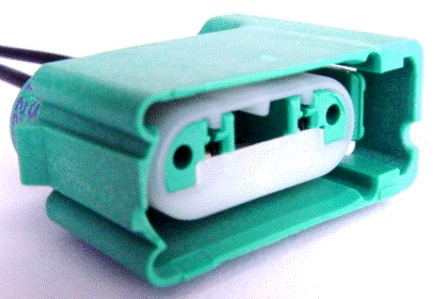

Connector End View (C487) - REVERSING LAMP, LEFT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C487 | REVERSING LAMP, LEFT | 13A409 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD477 (BU-GY) | 20 | GROUND - FRAME REAR LEFT #2 | 97BG-14474-AEA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CLS10 (GN-BN) | 20 | CTRL MOD. - REVERSE LEFT OR COMMON | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-868
Service Part Number:
6U2Z-14S411-CA
Gauge:
16
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Lamp - Headlamp - Low Beam
- Lamp - Headlamp Switch
