Connector End View (C465) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C465 | INLINE | BK | 13A409/1440514B242 | See Below | ||||

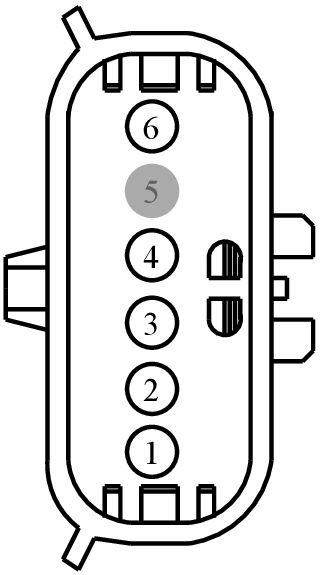

MALE
Harness
13A409/14405

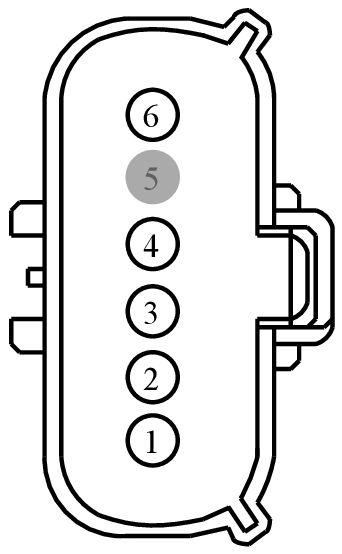

FEMALE
Harness
14B242
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBB34 (VT-BN) | 18 | BU5T-14421-HA | |||
| 2 | VMP43 (GN-BU) | 18 | BU5T-14421-HA | |||
| 2 | VMP43 (GN-BU) | 22 | BU5T-14421-HA | |||
| 3 | VMP44 (VT-GY) | 18 | BU5T-14421-HA | |||
| 3 | VMP44 (VT-GY) | 22 | BU5T-14421-HA | |||
| 4 | DMP43 (BK) | 18 | BU5T-14421-HA | |||
| 5 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBB34 (VT-BN) | 20 | BU5T-14474-UA | |||
| 2 | VMP43 (GN-BU) | 20 | BU5T-14474-UA | |||
| 3 | VMP44 (VT-GY) | 20 | BU5T-14474-UA | |||
| 4 | DMP43 (BK) | 20 | BU5T-14474-UA | |||
| 5 | * | * | N/A | |||

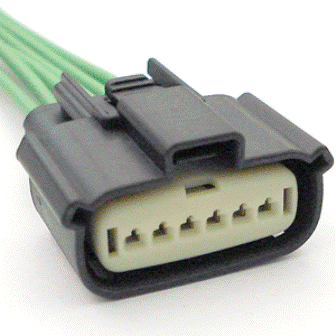

Available Pigtail Kits
Pigtail Kit Part Number WPT-944
Service Part Number:
9U2Z-14S411-NA
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
