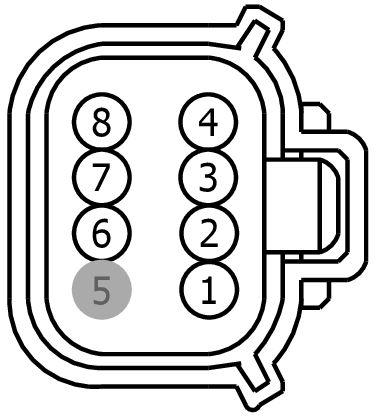

Connector End View (C461) - REAR LAMP ASSEMBLY RH
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C461 | REAR LAMP ASSEMBLY RH | 13A409 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD477 (BU) | 18 | GROUND - FRAME REAR LEFT #2 | BU5T-14474-UA | ||||
| 2 | CLS10 (GN-BN) | 20 | CTRL MOD. - REVERSE LEFT OR COMMON | 7C3T-14474-DA | ||||
| 3 | CBB34 (VT-BN) | 18 | FUSE - 34 OR CIRCUIT BREAKER | BU5T-14474-UA | ||||
| 4 | VDB06 (GY-OG) | 18 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | BU5T-14474-UA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | GD477 (BU-GY) | 18 | GROUND - FRAME REAR LEFT #2 | BU5T-14474-UA | ||||
| 7 | GD477 (BU) | 18 | GROUND - FRAME REAR LEFT #2 | BU5T-14474-UA | ||||
| 8 | VDB07 (VT-OG) | 18 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | BU5T-14474-UA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1614
Service Part Number:
FU2Z-14S411-BB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Connector - Inline
- Lamp - Reverse
- Mirror - Sideview / Heated
