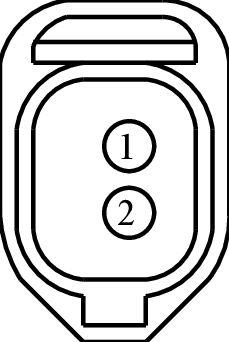

Connector End View (C452) - LICENSE PLATE LAMP, LEFT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C452 | LICENSE PLATE LAMP, LEFT | 15K868 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ADA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD477 (BU-GY) | 18 | GROUND - FRAME REAR LEFT #2 | 97BG-14474-ADA | ||||
| 2 | CLS05 (BU-OG) | 18 | CTRL MOD. - PARK LAMPS 1 | 97BG-14474-ADA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1460
Service Part Number:
1U2Z-14S411-BEC
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Fog/Driving
- Lamp - Front Cornering/Turn
- Lamp - Front Park
- Lamp - Front Turn
- Lamp - Front Turn/ Marker
- Lamp - Headlamp - High/Low Beam
- Lamp - License
- Lamp - Reverse
- Lamp - Running Board
- Lamp - Side Marker
- Lamp - Stop/Park
- Lamp - Under Hood
Pigtail Kit Part Number WPT-1204
Service Part Number:
1U2Z-14S411-BEB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Fog/Driving
- Lamp - Front Park
- Lamp - Front Turn
- Lamp - Front Turn/ Marker
- Lamp - License
- Lamp - Reverse
- Lamp - Running Board
- Lamp - Side Marker
- Lamp - Stop/Park
- Lamp - Under Hood
