Connector End View (C434) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C434 | INLINE | GY | 1440512663 | See Below | ||||

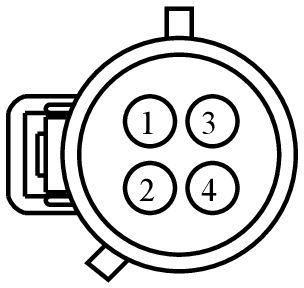

MALE
Harness
14405

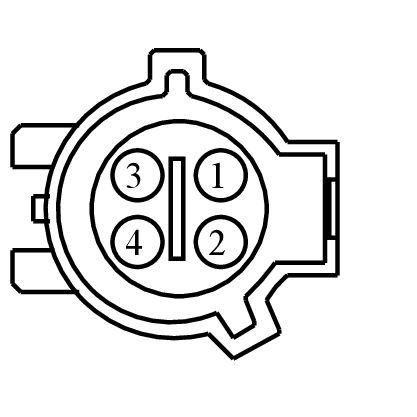

FEMALE
Harness
12663
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F2UB-14461-AA | Not Available | |
| F85B-14487-AA | Not Available |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS10 (GN-BN) | 14 | F2UB-14461-AA | |||
| 2 | GD477 (BU-GY) | 14 | F2UB-14461-AA | |||
| 3 | CLS05 (BU-GY) | 14 | F2UB-14461-AA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS10 (GN-BN) | 14 | F85B-14487-AA | |||
| 2 | GD477 (BU-GY) | 14 | F85B-14487-AA | |||
| 3 | CLS05 (BU-GY) | 14 | F85B-14487-AA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1298
Service Part Number:
3U2Z-14S411-HZB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- A/C Compressor Clutch
- Lamp - License
- Lamp - Park/Turn/Stop
- Motor - Rear Window Wiper
- Sensor - Mass Air Flow
Pigtail Kit Part Number WPT-818
Service Part Number:
3U2Z-14S411-FFAA
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Radio - Amplifier
- Sensor - Acceleration Pedal Position
- Sensor - Air Suspension - LH - Rear
- Sensor - Coolant Level
Pigtail Kit Part Number WPT-111
Service Part Number:
1U2Z-14S411-KA
Gauge:
14
Pin material:
Gold
Cavities:
4
Vehicle Uses:
- Sensor - O2 (HEGO/ EGO)
