Connector End View (C431) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C431 | INLINE | 13A57614405 | See Below | |||||

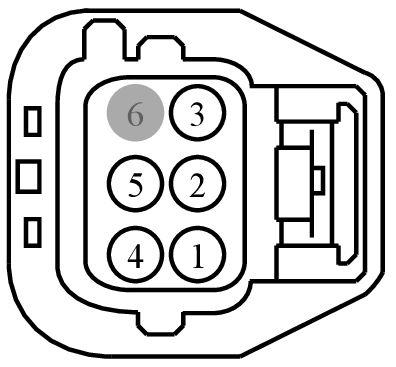

MALE
Harness
13A576

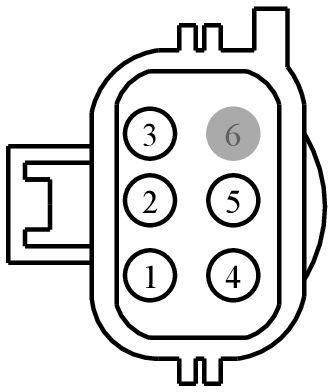

FEMALE
Harness
14405
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| FU5T-14421-CA | Not Available | |
| 97BG-14421-BFA | EU2Z-14421-FA | 2.8 |
| 97BG-14421-BEA | EU2Z-14421-FA | 2.8 |
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |
| 97BG-14474-BEA | DU2Z-14474-FA | 2.8 |
| F8ZB-14474-AA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CAT06 (YE) | 10 | 97BG-14421-BFA | |||
| 2 | CAT11 (BN) | 10 | 97BG-14421-BFA | |||
| 3 | CAT03 (GY-BN) | 18 | 97BG-14421-BEA | |||
| 4 | CAT09 (GN) | 10 | 97BG-14421-BFA | |||
| 5 | CAT14 (OG) | 12 | FU5T-14421-CA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CAT06 (YE) | 10 | 97BG-14474-BFA | |||
| 2 | CAT11 (BN) | 10 | 97BG-14474-BFA | |||
| 3 | CAT03 (GY-BN) | 18 | 97BG-14474-BEA | |||
| 4 | CAT09 (GN) | 10 | 97BG-14474-BFA | |||
| 5 | CAT14 (OG) | 12 | F8ZB-14474-AA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-163
Service Part Number:
1U2Z-14S411-BUA
Gauge:
14
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Windshield Wiper
Pigtail Kit Part Number WPT-1495
Service Part Number:
AU2Z-14S411-BKB
Gauge:
14
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Trailer Tow - Vehicle Side
