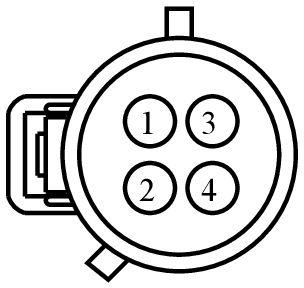

Connector End View (C423) - REAR LAMP, LEFT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C423 | REAR LAMP, LEFT | 13A409/12663/14405 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F2UB-14461-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLS10 (GN-BN) | 16 | CTRL MOD. - REVERSE LEFT OR COMMON | F2UB-14461-AA | ||||
| 2 | GD477 (BU-GY) | 16 | GROUND - FRAME REAR LEFT #2 | F2UB-14461-AA | ||||
| 2 | GD477 (BU) | 16 | GROUND - FRAME REAR LEFT #2 | F2UB-14461-AA | ||||
| 3 | CLS05 (BU-GY) | 16 | CTRL MOD. - PARK LAMPS 1 | F2UB-14461-AA | ||||
| 4 | CLS27 (GN-OG) | 16 | CTRL MOD. - TURN LAMP RIGHT REAR | F2UB-14461-AA | ||||
| 4 | CLS23 (GY-BN) | 16 | CTRL MOD. - TURN LAMP LEFT REAR | F2UB-14461-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1298
Service Part Number:
3U2Z-14S411-HZB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- A/C Compressor Clutch
- Lamp - License
- Lamp - Park/Turn/Stop
- Motor - Rear Window Wiper
- Sensor - Mass Air Flow
