Connector End View (C421) - INLINE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C421	INLINE	1440515K868			See Below

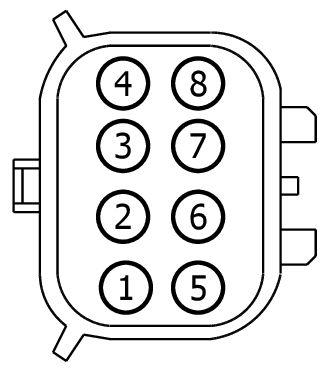

MALE

Harness

14405

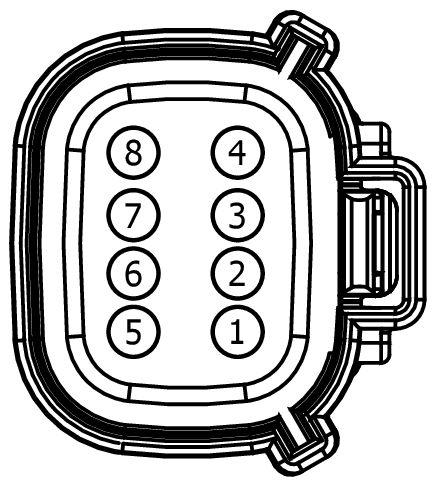

FEMALE

Harness

15K868

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14421-HA	EU2Z-14421-CA	1.5
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CLS05 (BU-OG)	18	BU5T-14421-HA
2	VMP15 (YE-GN)	22	BU5T-14421-HA
3	VMP14 (WH-OG)	22	BU5T-14421-HA
4	GD477 (BU-GY)	18	BU5T-14421-HA
5	LMP07 (BU-WH)	22	BU5T-14421-HA
6	VMP16 (YE-GY)	22	BU5T-14421-HA
7	VMP17 (YE-OG)	22	BU5T-14421-HA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CLS05 (BU-OG)	18	BU5T-14474-UA
2	VMP15 (YE-GN)	22	BU5T-14474-UA
3	VMP14 (WH-OG)	22	BU5T-14474-UA
4	GD477 (BU-GY)	18	BU5T-14474-UA
5	LMP07 (BU-WH)	22	BU5T-14474-UA
6	VMP16 (YE-GY)	22	BU5T-14474-UA
7	VMP17 (YE-OG)	22	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1605

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-DC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - CHMSL (Center High Mount Stop Lamp)
Lamp - Flashing LED
Lamp - Park/Turn/Stop
Mirror - Sideview
Mirror - Sideview / Heated
Module - Anti-Lock Brake System

Pigtail Kit Part Number WPT-1524

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ALB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Actuator - Door Lock - Decklid/Liftgate
Actuator - Door Lock - LH - Sliding Door
Actuator - Door Lock - RH - Sliding Door
Connector - Inline
Inflator - Safety Belt
