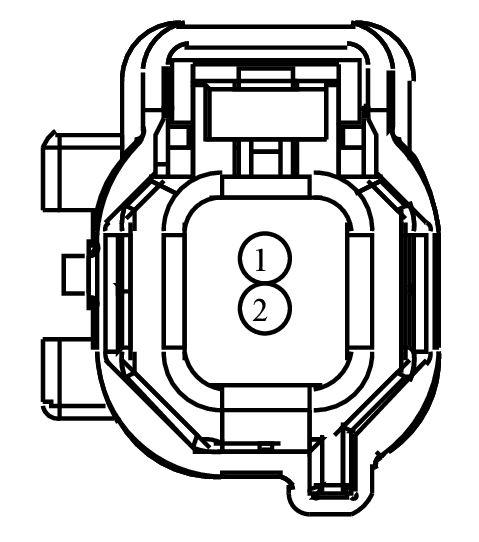

Connector End View (C411) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C411 | INLINE | 13A41213A409 | See Below | |||||
MALE
Harness
13A412
FEMALE
Harness
13A409
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ADA | Not Available | |
| 7C3T-14474-RA | Not Available |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLN06 (WH) | 18 | 97BG-14421-ADA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLN06 (WH) | 18 | 7C3T-14474-RA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1618
Service Part Number:
KU2Z-14S411-LA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Antenna - Keyless Entry
- Connector - Inline
- Switch - Seat Belt Warning
Pigtail Kit Part Number WPT-1116
Service Part Number:
AU2Z-14S411-BJA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Running Board
- Sensor - Knock
- Sensor - Speed
- Sensor - Water in Fuel
