Connector End View (C405) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C405 | INLINE | 1440513A409 | See Below | |||||

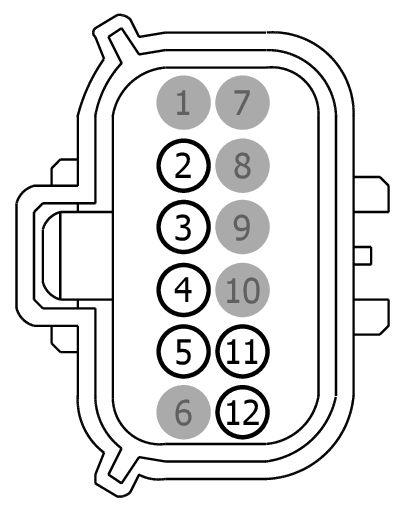

MALE
Harness
14405

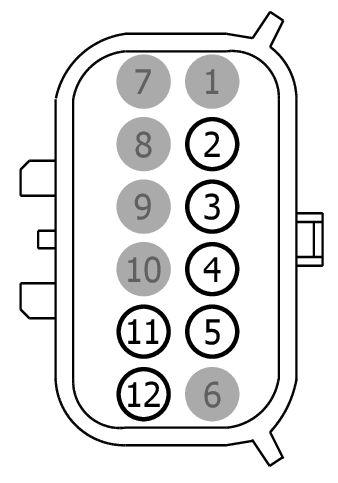

FEMALE
Harness
13A409
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CLS18 (GY-BN) | 18 | BU5T-14421-HA | |||
| 3 | CLS54 (BU-OG) | 18 | BU5T-14421-HA | |||
| 4 | CLN13 (WH-BU) | 22 | BU5T-14421-HA | |||
| 5 | CLS55 (GN-BU) | 22 | BU5T-14421-HA | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | * | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | CLN06 (WH) | 18 | BU5T-14421-HA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CLS18 (GY-BN) | 18 | BU5T-14474-UA | |||
| 3 | CLS54 (BU-OG) | 18 | BU5T-14474-UA | |||
| 4 | CLN13 (WH-BU) | 22 | BU5T-14474-UA | |||
| 5 | CLS55 (GN-BU) | 18 | BU5T-14474-UA | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | * | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | CLN06 (WH) | 18 | BU5T-14474-UA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1601
Service Part Number:
HU2Z-14S411-CB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Module - Anti-Lock Brake System
- Module - Wigwag Lamps
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
