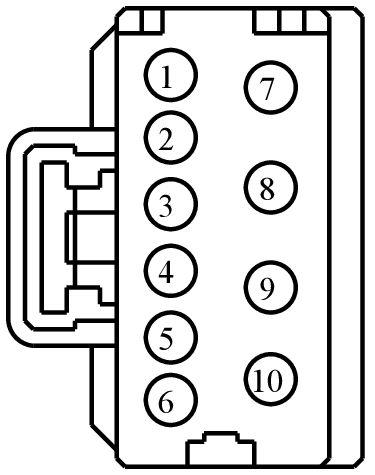

Connector End View (C360) - SEAT CONTROL SWITCH, DRIVER SIDE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C360 | SEAT CONTROL SWITCH, DRIVER SIDE | 14D231 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPS25 (WH-VT) | 16 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | N/A | ||||
| 2 | CPS24 (GY) | 16 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | N/A | ||||
| 3 | CPS19 (GY-VT) | 20 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | N/A | ||||
| 4 | CPS18 (BN-GN) | 20 | SWITCH - DRIVER LUMBAR PUMP | N/A | ||||
| 5 | CPS23 (GN-VT) | 16 | SWITCH - SEAT ADJUST. DRIVER FORWARD | N/A | ||||
| 6 | CPS28 (GN) | 16 | SWITCH - SEAT ADJUST. DRIVER REARWARD | N/A | ||||
| 7 | GD904 (BK-BU) | 16 | GROUND - DRIVER SEAT # SEAT SWITCH | N/A | ||||
| 8 | CPS27 (BU-BN) | 16 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | N/A | ||||
| 9 | CBX05 (VT-RD) | 16 | POWER - SEAT # POWER SEAT SWITCH | N/A | ||||
| 10 | CPS26 (YE-BU) | 16 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1042
Service Part Number:
AU2Z-14S411-CA
Gauge:
12 14
Pin material:
Tin & Silver
Cavities:
10
Vehicle Uses:
- Module - Transfer Case Shift Control
