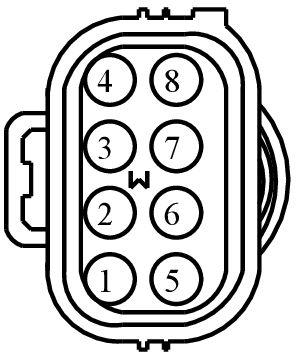

Connector End View (C350) - TRANSFER CASE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C350	TRANSFER CASE	7C078			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-BEA	EU2Z-14421-FA	2.8
97BG-14421-BDA	EU2Z-14421-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RCF09 (BN-WH)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR POSITION RETURN (4WDPRTN)	97BG-14421-BDA
1	RCF09 (BN-WH)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR POSITION RETURN (4WDPRTN)	97BG-14421-BDA
2	CCF03 (GY-BN)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE CLUTCH (4WDC)	97BG-14421-BEA
3	CCF07 (BN-GN)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR CCW (4WDM)	97BG-14421-BEA
4	CCF08 (GY-OG)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR CW (4WDM)	97BG-14421-BEA
5	CCF14 (GN-OG)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 1 (4WDP)	97BG-14421-BDA
5	CCF14 (GN-OG)	18	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 1 (4WDP)	97BG-14421-BDA
6	CCF15 (BN-YE)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 2 (4WDP)	97BG-14421-BDA
6	CCF15 (BN-YE)	18	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 2 (4WDP)	97BG-14421-BDA
7	CCF16 (VT-GN)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 3 (4WDP)	97BG-14421-BDA
7	CCF16 (VT-GN)	18	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 3 (4WDP)	97BG-14421-BDA
8	CCF17 (WH-OG)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 4 (4WDP)	97BG-14421-BDA
8	CCF17 (WH-OG)	18	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 4 (4WDP)	97BG-14421-BDA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1084

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AEA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Connector - Inline
