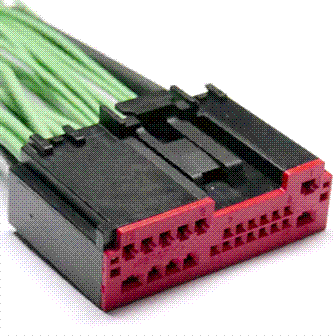

Connector End View (C341C) - DRIVER SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341C	DRIVER SEAT MODULE (DSM)	14D231			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

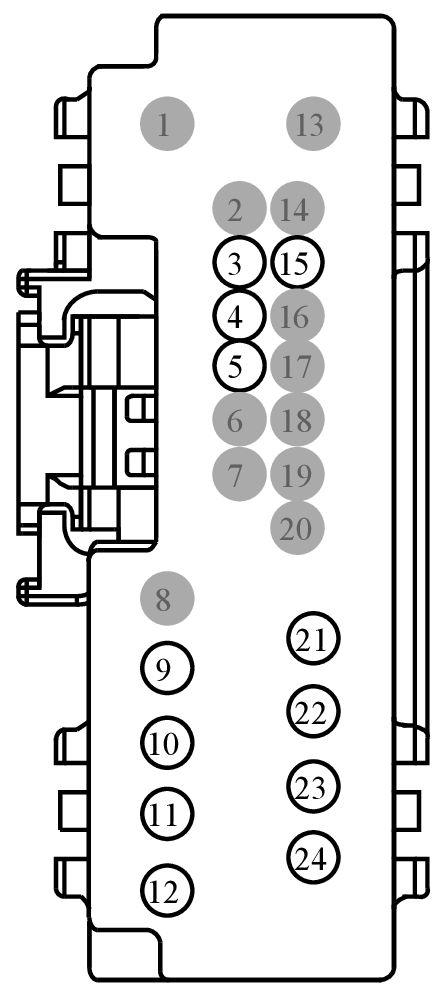

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	LPP06 (YE-BU)	18	CTRL MOD. - SENSOR ADJUSTABLE PEDAL +	N/A
4	RPP07 (YE-GN)	18	CTRL MOD. - SENSOR ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) -	N/A
5	CPP18 (BN-VT)	18	CTRL MOD. - SOLENOID RAKE (TILT)	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CPP10 (BN-BU)	18	SWITCH - ADJUST. PEDALS # REARWARD	N/A
10	CPP04 (GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP	N/A
11	CPP22 (GY-BN)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD	N/A
12	CPP01 (WH-OG)	20	CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RPP06 (GN)	18	CTRL MOD. - SENSOR ADJUSTABLE PEDAL -	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	CPP09 (VT-OG)	20	SWITCH - ADJUST. PEDALS # FORWARD	N/A
22	CPP23 (VT-GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN	N/A
23	CPP03 (GN-VT)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD	N/A
24	CPP02 (BN)	20	CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1550

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AJA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Lamp - Front Cornering/ Turn
Module - Driver Door
Module - Headlamp Control
Module - Heated Seat
Module - Seat Memory
Module - Upfitter Interface
