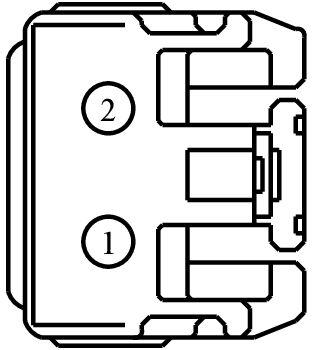

Connector End View (C341A) - DRIVER SEAT MODULE (DSM)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C341A | DRIVER SEAT MODULE (DSM) | 14D231 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBX05 (VT-RD) | 16 | POWER - SEAT # POWER SEAT SWITCH | N/A | ||||
| 2 | GD906 (BK-GY) | 16 | GROUND - SEAT # MEMORY MODULE HIGH CURRENT | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1486
Service Part Number:
3U2Z-14S411-PB
Gauge:
12
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Inverter - DC to AC
- Module - Heated Seat
- Module - Lighting Control
- Module - Seat Memory
- Module - Variable Speed Blower Controller
- Motor - Heater/AC Blower (Auxiliary)
- Motor - Heater/AC Blower (Front)
- Radio - Amplifier
- Relay - Blower Motor
- Relay - Trailer Tow
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
- Terminal - Rear Window Defroster Grid
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-236
Service Part Number:
3U2Z-14S411-PA
Gauge:
10
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Mirror - Vanity
- Module - Seat Memory
- Motor - Heater/AC Blower (Auxiliary)
- Motor - Heater/AC Blower (Front)
- Radio - Amplifier
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
