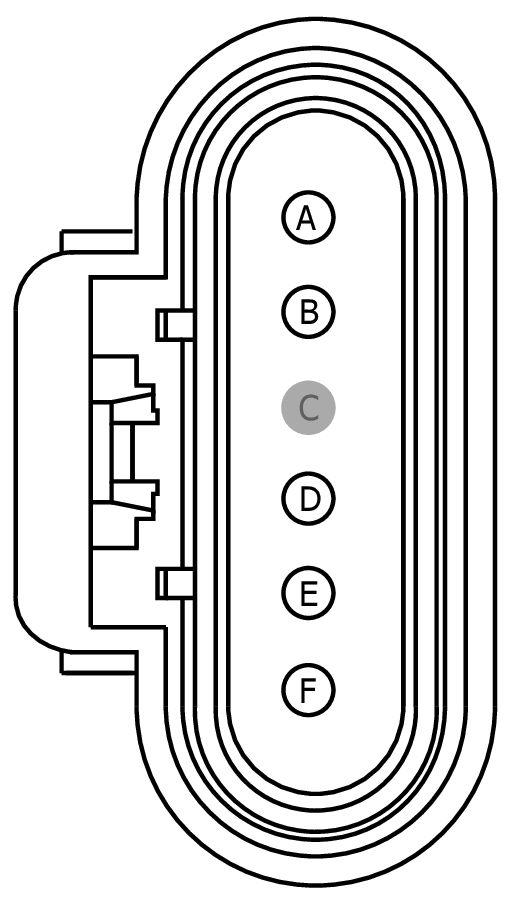

Connector End View (C1158) - COOLING FAN
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1158 |
COOLING FAN |
12B637 |
N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 2S65-14474-AA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| A |
CBK03 (GY) |
18 |
FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) |
2S65-14474-AA |
| B |
LE111 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
2S65-14474-AA |
| C |
* |
* |
Not Used |
N/A |
| D |
VEC10 (GY-YE) |
18 |
SENSOR - FAN SPEED (FSS) |
2S65-14474-AA |
| E |
GD131 (BK-GY) |
18 |
GROUND - HEADLAMP PANEL/GOR RIGHT |
2S65-14474-AA |
| F |
VE203 (VT) |
18 |
CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) |
2S65-14474-AA |
