Connector End View (C1147) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1147 | INLINE | 12B63712A581 | See Below | |||||

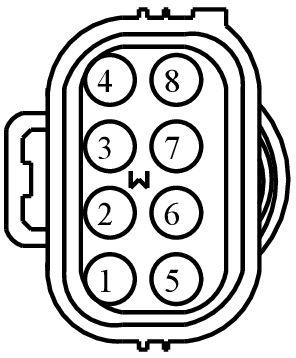

MALE
Harness
12B637

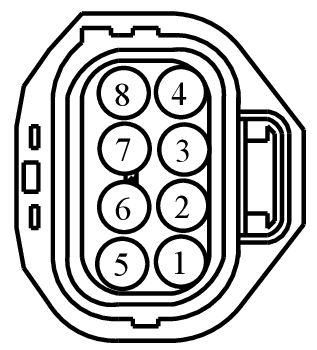

FEMALE
Harness
12A581
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| FU5T-14421-CA | Not Available | |
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE243 (GY-VT) | 12 | FU5T-14421-CA | |||
| 2 | CE244 (BU-BN) | 12 | FU5T-14421-CA | |||
| 3 | CE245 (VT-WH) | 12 | FU5T-14421-CA | |||
| 4 | CE246 (YE-BU) | 12 | FU5T-14421-CA | |||
| 5 | CE247 (GN-WH) | 12 | FU5T-14421-CA | |||
| 6 | CE248 (WH-BN) | 12 | FU5T-14421-CA | |||
| 7 | CE251 (BN-GN) | 12 | FU5T-14421-CA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE243 (GY-VT) | 16 | 97BG-14474-BFA | |||
| 2 | CE244 (BU-BN) | 16 | 97BG-14474-BFA | |||
| 3 | CE245 (VT-WH) | 16 | 97BG-14474-BFA | |||
| 4 | CE246 (YE-BU) | 16 | 97BG-14474-BFA | |||
| 5 | CE247 (GN-WH) | 16 | 97BG-14474-BFA | |||
| 6 | CE248 (WH-BN) | 16 | 97BG-14474-BFA | |||
| 7 | CE251 (BN-GN) | 16 | 97BG-14474-BFA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1084
Service Part Number:
AU2Z-14S411-AEA
Gauge:
12
Pin material:
Tin (greased)
Cavities:
8
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-521
Service Part Number:
3U2Z-14S411-TZA
Gauge:
12
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Fuel Pump/Sending Unit
- Motor - Power Window - LH - Front
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Front
- Motor - Power Window - RH - Rear
- Relay - Fuel Pump
