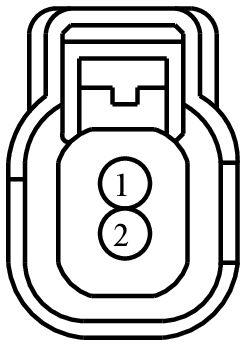

Connector End View (C1126) - SIDE LAMP, RIGHT FRONT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1126 | SIDE LAMP, RIGHT FRONT | 12A581 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-RA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD131 (BK-GY) | 18 | GROUND - HEADLAMP PANEL/GOR RIGHT | 7C3T-14474-RA | ||||
| 2 | CLS07 (BN-YE) | 18 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | 7C3T-14474-RA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1217
Service Part Number:
AU2Z-14S411-AXA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Rear Park
- Lamp - Reverse
- Lamp - Side Marker
- Sensor - Washer Fluid level
- Switch - Windshield Wiper / Washer
