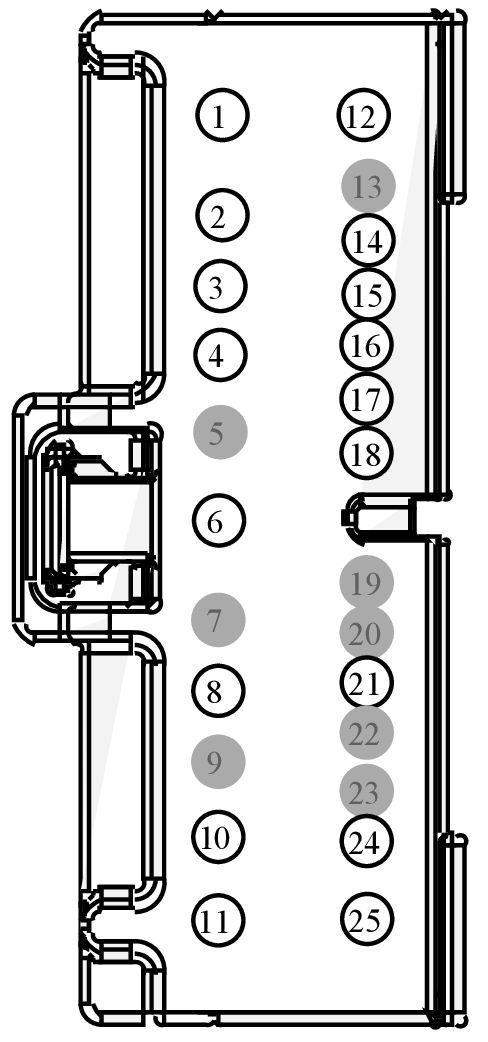

Connector End View (C1035A) - BATTERY JUNCTION BOX (BJB)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1035A | BATTERY JUNCTION BOX (BJB) | 12A581 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-CA | DU2Z-14474-DA | 1.5 |
| 7C3T-14474-EA | DU2Z-14474-DA | 1.5 |
| XF2T-14474-BA | EU2Z-14474-AA | 2.8 |
| F8VB-14474-AA | EU2Z-14474-AB | 2.8 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW68 (VT-OG) | 10 | CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # DOWN | F8VB-14474-AA | ||||
| 2 | SBB98 (YE-RD) | 18 | FUSE - 98 OR CIRCUIT BREAKER | 7C3T-14474-DA | ||||
| 3 | SBB95 (WH-RD) | 18 | FUSE - 95 OR CIRCUIT BREAKER | 7C3T-14474-CA | ||||
| 4 | GD131 (BK-GN) | 16 | GROUND - HEADLAMP PANEL/GOR RIGHT | 7C3T-14474-EA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CBB77 (WH) | 10 | FUSE - 77 OR CIRCUIT BREAKER | F8VB-14474-AA | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | SBB94 (BN-RD) | 20 | FUSE - 94 OR CIRCUIT BREAKER | 7C3T-14474-DA | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | SBB90 (YE-RD) | 18 | FUSE - 90 OR CIRCUIT BREAKER | 7C3T-14474-EA | ||||
| 11 | CPW67 (BN-VT) | 10 | CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # UP | F8VB-14474-AA | ||||
| 12 | CAT11 (BN) | 18 | CTRL MOD. - TRAILER TOW # PARK LAMPS (COLOR TO SAE 1239) | XF2T-14474-BA | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | CBB33 (WH-BN) | 22 | FUSE - 33 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
| 15 | CPW59 (VT-BN) | 22 | SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT | 8U5T-14474-BB | ||||
| 16 | CPW58 (YE-OG) | 22 | SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT | 8U5T-14474-BB | ||||
| 17 | CAT17 (BN) | 22 | RELAY - TRAILER TOW PARK LAMPS (COLOR TO SAE 1239) | 8U5T-14474-BB | ||||
| 18 | CBB96 (BU-GN) | 22 | FUSE - 96 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
| 19 | * | * | Not Used | N/A | ||||
| 20 | * | * | Not Used | N/A | ||||
| 21 | CDC64 (WH-BU) | 22 | RELAY - RUN ACCESSORY | 8U5T-14474-BB | ||||
| 22 | * | * | Not Used | N/A | ||||
| 23 | * | * | Not Used | N/A | ||||
| 24 | CE226 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + | 8U5T-14474-BB | ||||
| 24 | CE226 (YE-GN) | 22 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + | 8U5T-14474-BB | ||||
| 25 | CE608 (VT-GN) | 20 | RELAY - FUEL PUMP | XF2T-14474-BA | ||||
| 25 | CE608 (VT-GY) | 20 | RELAY - FUEL PUMP | XF2T-14474-BA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1529
Service Part Number:
JU2Z-14S411-VA
Gauge:
12 16 18 20
Pin material:
Tin & Silver
Cavities:
25
Vehicle Uses:
- Junction Box - Power Distribution
