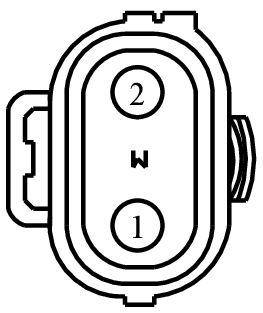

Connector End View (C1026) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1026 | INLINE | 8C29012A581 | See Below | |||||
MALE
Harness
8C290
FEMALE
Harness
12A581
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-CFA | Not Available | |
| 97BG-14474-CFA | KU2Z-14474-AA | 6.3 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBB85 (YE) | 18 | 97BG-14421-CFA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBB85 (YE) | 18 | 97BG-14474-CFA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1417
Service Part Number:
3U2Z-14S411-EUAB
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Motor - Engine Cooling Fan
- Pump - Fuel (External)
- Resistor - Fan Dropping
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1619
Service Part Number:
3U2Z-14S411-EUAC
Gauge:
14
Pin material:
Silver & Silver(Greased)
Cavities:
2
Vehicle Uses:
- Actuator - Park Brake
- Battery Charger - Cooling Fan
- Connector - Inline
- Module - All Wheel Drive
- Motor - Engine Cooling Fan
- Pump - Fuel (External)
- Resistor - Fan Dropping
- Sensor - Brake Fluid Level
- Sensor - Washer Fluid level
- Trailer Tow - Vehicle Side
