Connector End View (C313) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C313 | INLINE | 14D23114A005 | Not Available | |||||

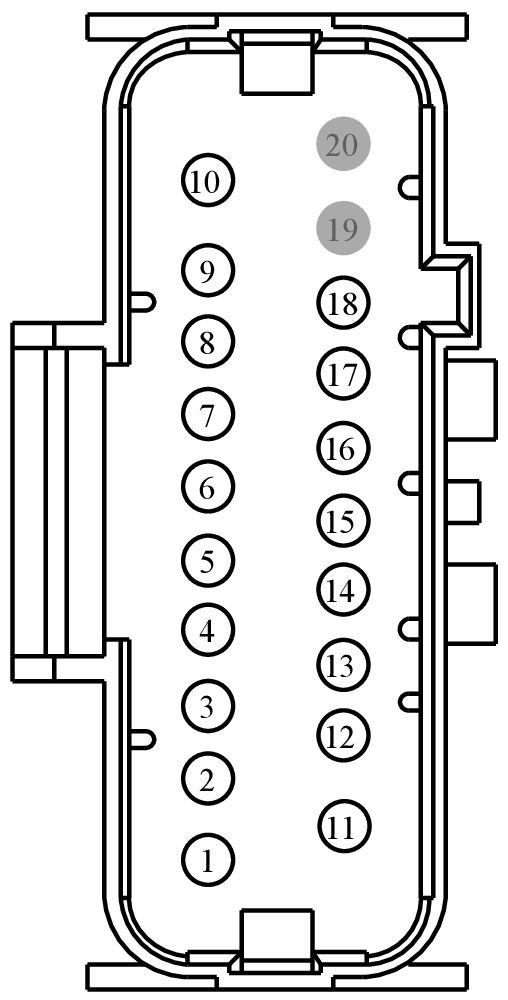

MALE
Harness
14D231

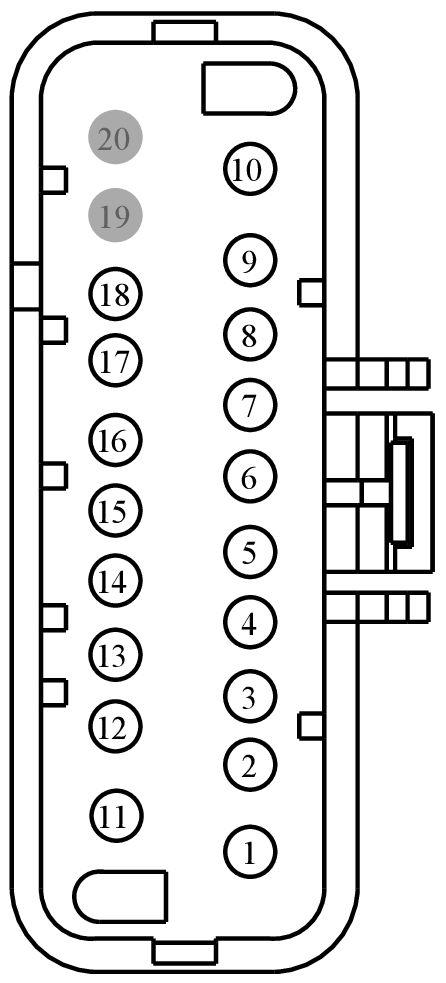

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1F1T-14474-BA | DU2Z-14474-EA | 2.8 |
| 7C3T-14474-CA | DU2Z-14474-DA | 1.5 |
| 97BG-14474-BCA | DU2Z-14474-EA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBX03 (BU-RD) | 18 | N/A | |||
| 2 | VDB06 (GY-OG) | 18 | N/A | |||
| 3 | VDB07 (VT-OG) | 18 | N/A | |||
| 4 | CPP22 (GY-BN) | 20 | N/A | |||
| 5 | CPP04 (GY) | 20 | N/A | |||
| 6 | CPP18 (BN-VT) | 18 | N/A | |||
| 7 | CPP01 (WH-OG) | 20 | N/A | |||
| 8 | CPP23 (VT-GY) | 20 | N/A | |||
| 9 | CPP03 (GN-VT) | 20 | N/A | |||
| 10 | CBX04 (WH-RD) | 18 | N/A | |||
| 11 | GD906 (BK-GY) | 16 | N/A | |||
| 12 | CPP02 (BN) | 20 | N/A | |||
| 13 | CPP09 (VT-OG) | 20 | N/A | |||
| 14 | CPP10 (BN-BU) | 18 | N/A | |||
| 15 | RPP07 (YE-GN) | 18 | N/A | |||
| 16 | RPP06 (GN) | 18 | N/A | |||
| 17 | GD905 (BK-GN) | 18 | N/A | |||
| 18 | LPP06 (YE-BU) | 18 | N/A | |||
| 19 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | SBP02 (YE-RD) | 18 | 7C3T-14474-CA | |||
| 2 | VDB06 (GY-OG) | 18 | 7C3T-14474-CA | |||
| 3 | VDB07 (VT-OG) | 18 | 7C3T-14474-CA | |||
| 4 | CPP22 (GY-BN) | 18 | 7C3T-14474-CA | |||
| 5 | CPP04 (GY) | 18 | 7C3T-14474-CA | |||
| 6 | VPP08 (WH) | 18 | 7C3T-14474-CA | |||
| 7 | CPP01 (WH-OG) | 18 | 7C3T-14474-CA | |||
| 8 | CPP23 (VT-GY) | 18 | 7C3T-14474-CA | |||
| 9 | CPP03 (GN-VT) | 18 | 7C3T-14474-CA | |||
| 10 | SBP02 (YE-RD) | 18 | 1F1T-14474-BA | |||
| 11 | GD233 (BK) | 10 | 97BG-14474-BCA | |||
| 12 | CPP02 (BN) | 18 | 7C3T-14474-CA | |||
| 13 | CPP09 (VT-OG) | 18 | 7C3T-14474-CA | |||
| 14 | CPP10 (BN-BU) | 18 | 7C3T-14474-CA | |||
| 15 | VPP17 (VT-BN) | 18 | 7C3T-14474-CA | |||
| 16 | CPP05 (WH-VT) | 18 | 7C3T-14474-CA | |||
| 17 | GD233 (BK) | 18 | 7C3T-14474-CA | |||
| 18 | LPP06 (YE-BU) | 22 | 7C3T-14474-CA | |||
| 19 | * | * | N/A | |||
