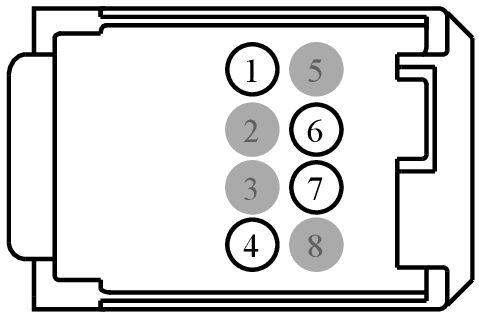

Connector End View (C290C) - GENERIC FUNCTION MODULE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C290C | GENERIC FUNCTION MODULE | 12A581 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-EB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBB91 (BU-RD) | 20 | FUSE - 91 OR CIRCUIT BREAKER | 9U5T-14474-EB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | GD131 (BK-GY) | 20 | GROUND - HEADLAMP PANEL/GOR RIGHT | 9U5T-14474-EB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | 9U5T-14474-EB | ||||
| 7 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | 9U5T-14474-EB | ||||
| 8 | * | * | Not Used | N/A | ||||

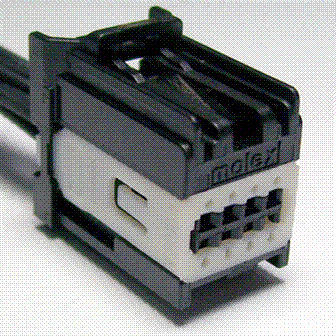

Available Pigtail Kits
Pigtail Kit Part Number WPT-1457
Service Part Number:
FU2Z-14S411-AVA
Gauge:
20
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Module - Front Interface
- Radio - Amplifier
