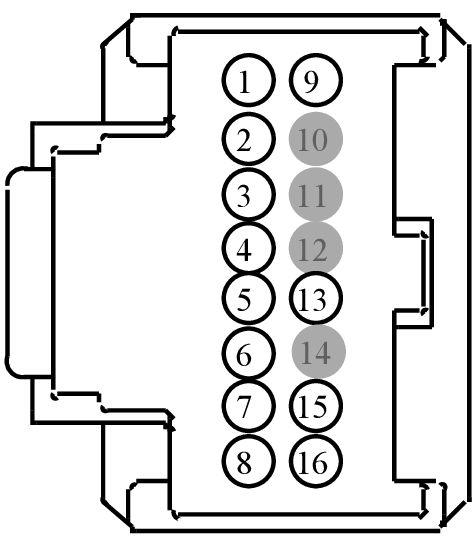

Connector End View (C290A) - GENERIC FUNCTION MODULE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C290A |
GENERIC FUNCTION MODULE |
14A303 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CAC19 (BU) |
22 |
#N/A |
9U5T-14474-DB |
| 2 |
CAC21 (GY) |
22 |
#N/A |
9U5T-14474-DB |
| 3 |
CAC23 (GY-YE) |
22 |
#N/A |
9U5T-14474-DB |
| 4 |
CAC25 (VT-WH) |
22 |
#N/A |
9U5T-14474-DB |
| 5 |
CAC27 (WH-GN) |
22 |
#N/A |
9U5T-14474-DB |
| 6 |
CAC29 (GY-VT) |
22 |
#N/A |
9U5T-14474-DB |
| 7 |
CAC31 (VT-BN) |
22 |
#N/A |
9U5T-14474-DB |
| 8 |
CAC33 (GY-BU) |
22 |
#N/A |
9U5T-14474-DB |
| 9 |
CAC35 (BU-GY) |
22 |
#N/A |
9U5T-14474-DB |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CAC52 (BN-WH) |
22 |
#N/A |
9U5T-14474-DB |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
VAC52 (GY-YE) |
22 |
#N/A |
9U5T-14474-DB |
| 16 |
RAC52 (BN-VT) |
22 |
#N/A |
9U5T-14474-DB |
