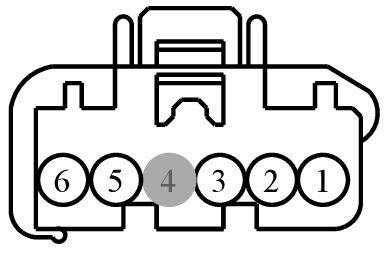

Connector End View (C289) - AIR INLET DOOR ACTUATOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C289 | AIR INLET DOOR ACTUATOR | BK | 19F561 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8S4T-14474-EA | Not Available | |
| AU5T-14474-HA | FU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | 8S4T-14474-EA | ||||
| 2 | VH438 (GN) | 26 | SENSOR - DOOR POSITION RECIRC. | AU5T-14474-HA | ||||
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF | 8S4T-14474-EA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CH208 (GN-OG) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS) | 8S4T-14474-EA | ||||
| 6 | CH207 (BU-GY) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS) | 8S4T-14474-EA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1151
Service Part Number:
BU2Z-14S411-MA
Gauge:
18
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Heater A/C Mode Door
- Motor - Heater/AC Blend Door
- Motor - Heater/AC Blower (Auxiliary)
- Motor - Heater/AC Inlet Door
