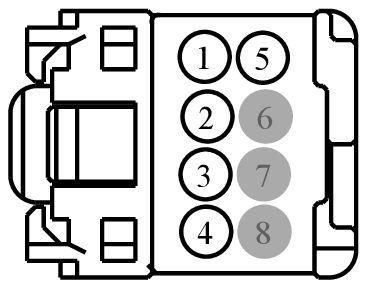

Connector End View (C284) - MODE SELECT SWITCH (MSS)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C284 | MODE SELECT SWITCH (MSS) | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 3F2T-14474-SA | ||||
| 2 | RCF13 (WH-BN) | 22 | SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) -+ | 3F2T-14474-SA | ||||
| 3 | CCF13 (WH-BU) | 22 | SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) + | 3F2T-14474-SA | ||||
| 4 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 3F2T-14474-SA | ||||
| 5 | CCF32 (WH-GN) | 22 | SWITCH - LOCKER MODE | 3F2T-14474-SA | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-995
Service Part Number:
3U2Z-14S411-BGB
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Lamp - Dimmer Switch
- Switch - 4x4 Control
- Switch - Adjustable Pedal
- Switch - Center Stack (Multipurpose)
- Switch - Dimmer
- Switch - Hazard Warning
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Multifunction (Wiper)
- Switch - Seat (3rd Row)
- Switch - Third Row Power Folding Seat
- Switch - Traction Control
