Connector End View (C260) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C260 | INLINE | 14C21014401 | See Below | |||||

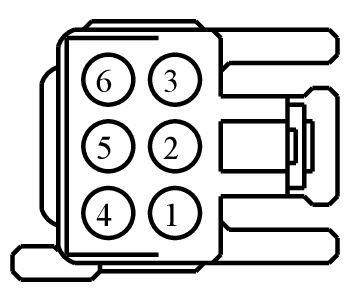

MALE
Harness
14C210

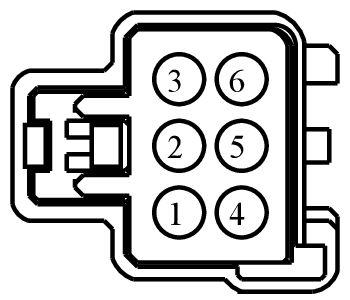

FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AAB | Not Available | |
| 97BG-14474-AAB | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CDC35 (BU-WH) | 22 | 97BG-14421-AAB | |||
| 2 | CPK36 (VT-BN) | 22 | 97BG-14421-AAB | |||
| 3 | GD216 (BK-VT) | 22 | 97BG-14421-AAB | |||
| 4 | SBP18 (YE-RD) | 22 | 97BG-14421-AAB | |||
| 5 | VLN04 (VT-GY) | 22 | 97BG-14421-AAB | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CDC35 (BU-WH) | 22 | 97BG-14474-AAB | |||
| 2 | CPK36 (VT-BN) | 22 | 97BG-14474-AAB | |||
| 3 | GD216 (BK-VT) | 22 | 97BG-14474-AAB | |||
| 4 | SBP18 (YE-RD) | 22 | 97BG-14474-AAB | |||
| 5 | VLN04 (VT-GY) | 22 | 97BG-14474-AAB | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1299
Service Part Number:
3U2Z-14S411-NBB
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Inverter - DC to AC
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Courtesy - Footwell
- Lamp - License
- Lamp - Park/Turn/Stop
- Lamp - Top Finish Panel
- Mating Connector WPT-962
- Motor - Adjustable Pedal
- Switch - Gear Shift Select/Neutral Safety
- Switch - Multifunction
Pigtail Kit Part Number WPT-962
Service Part Number:
3U2Z- 14S411-JBB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Mating Connector WPT-1299
- Switch - Gear Shift Select/Neutral Safety
- Switch - Overdrive Cancel
- Switch - Power Sliding Door
