Connector End View (C256) - PASSENGER AIRBAG
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C256 | PASSENGER AIRBAG | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AHA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR103 (GY-BU) | 18 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 + | 97BG-14421-AHA | ||||
| 2 | RR103 (VT-GN) | 18 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 - | 97BG-14421-AHA | ||||

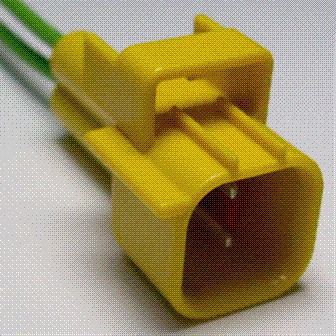

Available Pigtail Kits
Pigtail Kit Part Number WPT-1244
Service Part Number:
AU2Z-14S411-BMA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Passenger)
