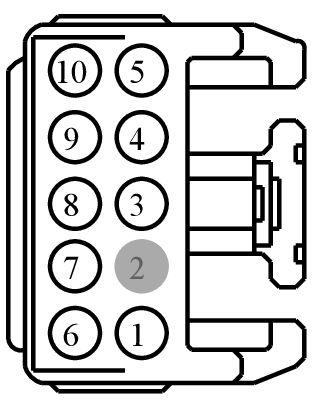

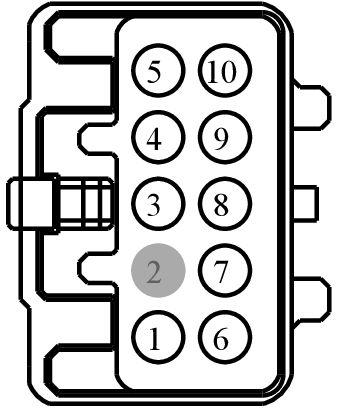

Connector End View (C248) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C248 | INLINE | 14A00514401 | See Below | |||||
MALE
Harness
14A005
FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ACB | Not Available | |
| 7C3T-14474-JA | Not Available | |
| 97BG-14421-AAB | Not Available | |
| 97BG-14474-ABB | DU2Z-14474-DA | 1.5 |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| 97BG-14474-AAB | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD238 (BK-WH) | 18 | 2L1T-14421-CA | |||
| 2 | * | * | N/A | |||
| 3 | CLF03 (VT-OG) | 20 | 2L1T-14421-CA | |||
| 4 | VDB29 (GN-BU) | 22 | 97BG-14421-AAB | |||
| 5 | VDB30 (WH-GN) | 22 | 97BG-14421-AAB | |||
| 6 | CBX07 (GN-RD) | 22 | 97BG-14421-AAB | |||
| 7 | CLN06 (WH) | 18 | 97BG-14421-AAB | |||
| 8 | CLN09 (YE-GN) | 18 | 97BG-14421-AAB | |||
| 9 | VLN04 (VT-GY) | 22 | 97BG-14421-AAB | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD238 (BK-WH) | 16 | 97BG-14474-ACB | |||
| 2 | * | * | N/A | |||
| 3 | CLF03 (VT-OG) | 20 | 97BG-14474-ABB | |||
| 4 | VDB29 (GN-BU) | 22 | 97BG-14474-AAB | |||
| 5 | VDB30 (WH-GN) | 22 | 97BG-14474-AAB | |||
| 6 | CBX07 (GN-RD) | 22 | 97BG-14474-AAB | |||
| 7 | CLN06 (WH) | 18 | 97BG-14474-AAB | |||
| 8 | CLN09 (YE-GN) | 18 | 7C3T-14474-JA | |||
| 9 | VLN04 (VT-GY) | 22 | 97BG-14474-AAB | |||

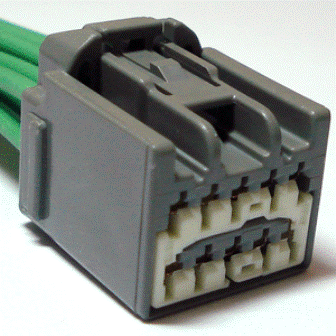

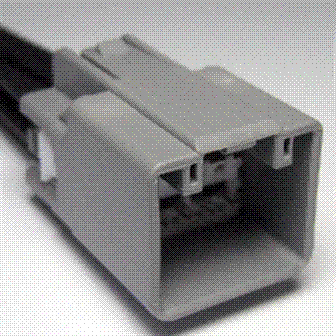

Available Pigtail Kits
Pigtail Kit Part Number WPT-1175
Service Part Number:
BU2Z-14S411-VA
Gauge:
16
Pin material:
Tin (greased)
Cavities:
10
Vehicle Uses:
- Lamp - Park/Turn/Stop
Pigtail Kit Part Number WPT-1037
Service Part Number:
1U2Z-14S411-BLB
Gauge:
14
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Inverter - DC to AC
- Module - Anti-theft
- Module - Heated Seat
- Module - Power Moonroof
- Radio - Amplifier
- Solenoid - Brake Shift Park Interlock
- Switch - Gear Shift Select/Neutral Safety
- Switch - Headlamp
- Switch - Heated Seat
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Overdrive Cancel
- Switch - Turn Signal
- Switch - Windshield Wiper / Washer
