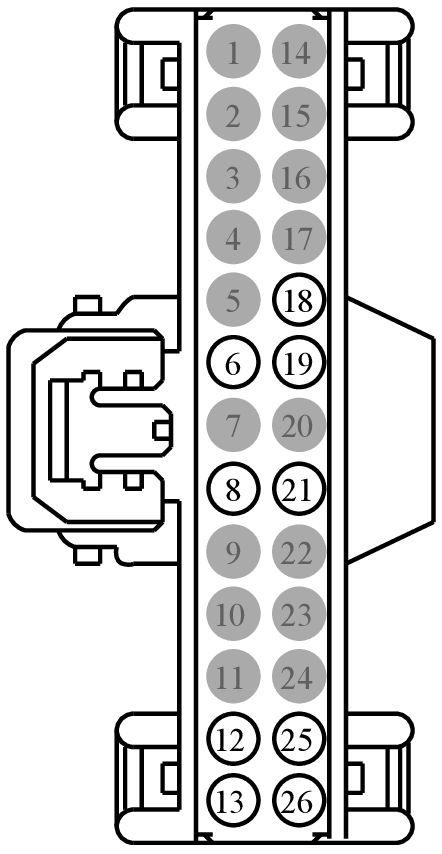

Connector End View (C240B) - AUDIO CONTROL MODULE (ACM)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C240B | AUDIO CONTROL MODULE (ACM) | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | VME90 (GY-BU) | 22 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) | 8U5T-14474-BB | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | VME80 (VT-GN) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | 8U5T-14474-BB | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | VME52 (BU) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + | 8U5T-14474-BB | ||||
| 13 | VME53 (VT-GN) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + | 8U5T-14474-BB | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
| 17 | * | * | Not Used | N/A | ||||
| 18 | SME23 (VT-RD) | 22 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE | 8U5T-14474-BB | ||||
| 19 | VME91 (WH-BN) | 22 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) | 8U5T-14474-BB | ||||
| 20 | * | * | Not Used | N/A | ||||
| 21 | RME80 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | 8U5T-14474-BB | ||||
| 22 | * | * | Not Used | N/A | ||||
| 23 | * | * | Not Used | N/A | ||||
| 24 | * | * | Not Used | N/A | ||||
| 25 | RME52 (GY-OG) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - | 8U5T-14474-BB | ||||
| 26 | RME53 (BN-WH) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - | 8U5T-14474-BB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1581
Service Part Number:
KU2Z-14S411-AA
Gauge:
20
Pin material:
Silver
Cavities:
26
Vehicle Uses:
- Control Head - Manual Climate
- DVD Player
- Instrument Cluster
- Junction Box - Smart
- Module - Audio Control
- Module - Driver Information
- Module - Heated Seat (Rear)
- Module - Liftgate
- Module - Power Decklid
- Module - Power Steering
- Radio
- Switch - Heater / A/C Blower (Front)
- Switch - Message Center
- Switch - Multifunction
