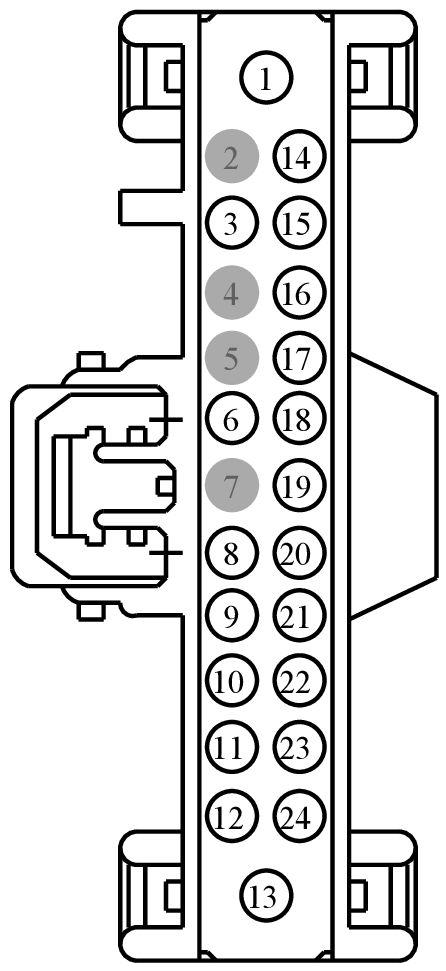

Connector End View (C240A) - AUDIO CONTROL MODULE (ACM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C240A	AUDIO CONTROL MODULE (ACM)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB\|8U5T-14474-CB	Not Available
97BG-14474-BBA	DU2Z-14474-EA	2.8
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP33 (RD)	18	FUSE - 33 OR CIRCUIT BREAKER	97BG-14474-BBA
2	*	*	Not Used	N/A
3	CDC54 (WH-GN)	22	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)	8U5T-14474-BB
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	RME45 (YE-GN)	22	JACK - AUDIO # EXT. AUX IN LEFT OR COMMON (-)	8U5T-14474-BB
7	*	*	Not Used	N/A
8	RME06 (GY-YE)	22	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP -	8U5T-14474-BB
9	RME09 (BN-YE)	22	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) -	8U5T-14474-BB\|8U5T-14474-CB
9	RME09 (BN-YE)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) -	8U5T-14474-BB\|8U5T-14474-CB
10	RME07 (WH-BN)	22	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) -	8U5T-14474-BB
10	RME07 (WH-BN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) -	8U5T-14474-BB
11	RME10 (WH-OG)	22	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) -	8U5T-14474-BB
11	RME10 (WH-OG)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) -	8U5T-14474-BB
12	RME12 (BN-BU)	22	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) -	8U5T-14474-BB\|8U5T-14474-CB
12	RME12 (BN-BU)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) -	8U5T-14474-BB\|8U5T-14474-CB
13	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	97BG-14474-BBA
13	GD215 (BK-GN)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	97BG-14474-BBA
14	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	8U5T-14474-BB
15	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	8U5T-14474-BB
16	DME45 (*)	18	JACK - AUDIO # EXT. AUX IN D	8U5T-14474-BB
17	VME45 (BU)	22	JACK - AUDIO # EXT. AUX IN LEFT (+)	8U5T-14474-BB
18	VME46 (BU-GN)	22	JACK - AUDIO # EXT. AUX IN RIGHT (+)	8U5T-14474-BB
19	DME17 (*)	18	CTRL MOD. - AUDIO HEAD UNIT # RADIO D	8U5T-14474-BB
20	VME06 (GN)	22	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP +	8U5T-14474-BB
21	VME09 (WH-GN)	22	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) +	8U5T-14474-BB\|8U5T-14474-CB
21	VME09 (WH-GN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) +	8U5T-14474-BB\|8U5T-14474-CB
22	VME07 (WH)	22	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +	8U5T-14474-BB
22	VME07 (WH-BU)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +	8U5T-14474-BB
22	VME07 (WH)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +	8U5T-14474-BB
23	VME10 (WH-VT)	22	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) +	8U5T-14474-BB
23	VME10 (WH-VT)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) +	8U5T-14474-BB
24	VME12 (BN-WH)	22	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) +	8U5T-14474-BB\|8U5T-14474-CB
24	VME12 (BN-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) +	8U5T-14474-BB\|8U5T-14474-CB
