Connector End View (C237) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C237 | INLINE | 19F56112A581 | See Below | |||||

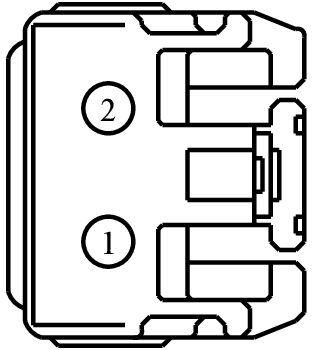

MALE
Harness
19F561

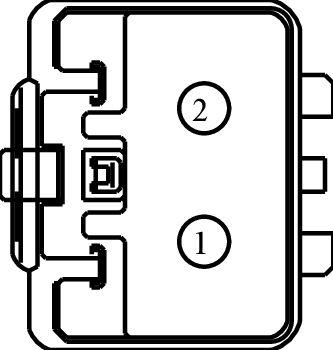

FEMALE
Harness
12A581
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| XW4T-14421-EA | KU2Z-14421-AA | 6.3 |
| XW4T-14474-TA | JU2Z-14474-AB | 6.3 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD123 (BK-GY) | 10 | XW4T-14421-EA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD123 (BK-GY) | 8 | XW4T-14474-TA | |||

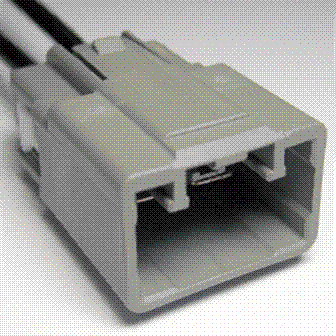

Available Pigtail Kits
Pigtail Kit Part Number WPT-1190
Service Part Number:
3U2Z-14S411-EFAB
Gauge:
10
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Terminal - Rear Window Defroster Grid
Pigtail Kit Part Number WPT-1486
Service Part Number:
3U2Z-14S411-PB
Gauge:
12
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Inverter - DC to AC
- Module - Heated Seat
- Module - Lighting Control
- Module - Seat Memory
- Module - Variable Speed Blower Controller
- Motor - Heater/AC Blower (Auxiliary)
- Motor - Heater/AC Blower (Front)
- Radio - Amplifier
- Relay - Blower Motor
- Relay - Trailer Tow
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
- Terminal - Rear Window Defroster Grid
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-236
Service Part Number:
3U2Z-14S411-PA
Gauge:
10
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Mirror - Vanity
- Module - Seat Memory
- Motor - Heater/AC Blower (Auxiliary)
- Motor - Heater/AC Blower (Front)
- Radio - Amplifier
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
