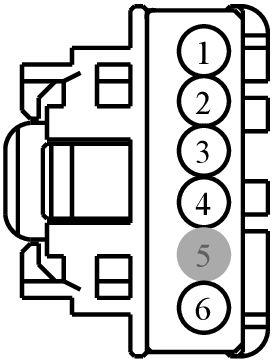

Connector End View (C236) - AIR DISTRIBUTION DOOR ACTUATOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C236 | AIR DISTRIBUTION DOOR ACTUATOR | BK | 19F561 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CH202 (BU-GN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) | 3F2T-14474-SA | ||||
| 2 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | 3F2T-14474-SA | ||||
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF | 3F2T-14474-SA | ||||
| 4 | VH437 (VT-BN) | 22 | SENSOR - DOOR POSITION PANEL/FLOOR | 3F2T-14474-SA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CH203 (GN-BN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) | 3F2T-14474-SA | ||||
