Connector End View (C221) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C221 | INLINE | LT GY | 12A58119F561 | See Below | ||||

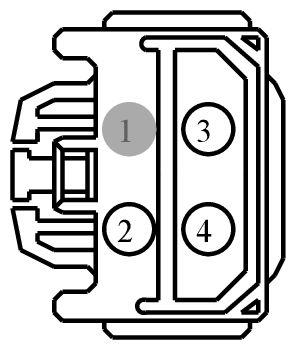

MALE
Harness
12A581

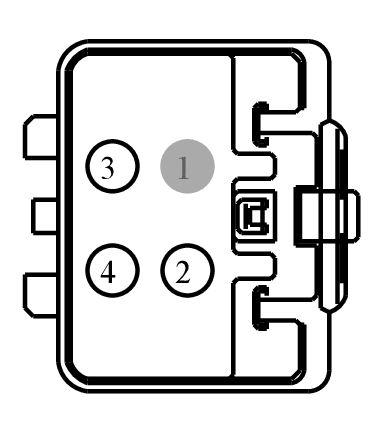

FEMALE
Harness
19F561
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| XW4T-14421-EA | KU2Z-14421-AA | 6.3 |
| XW4T-14474-TA | JU2Z-14474-AB | 6.3 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CBB84 (VT) | 10 | XW4T-14421-EA | |||
| 3 | CBB83 (GY) | 10 | XW4T-14421-EA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CBB84 (VT) | 10 | XW4T-14474-TA | |||
| 3 | CBB83 (GY) | 10 | XW4T-14474-TA | |||
Available Pigtail Kits

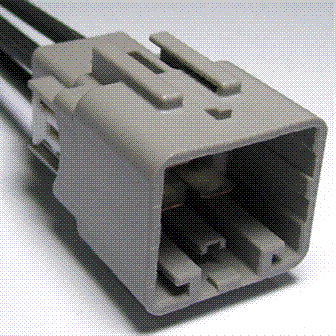

Pigtail Kit Part Number WPT-1408
Service Part Number:
EU2Z-14S411-XA
Gauge:
10
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-1177
- Switch - Upfitter
Pigtail Kit Part Number WPT-1177
Service Part Number:
AU2Z-14S411-BHA
Gauge:
10
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-1408
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
