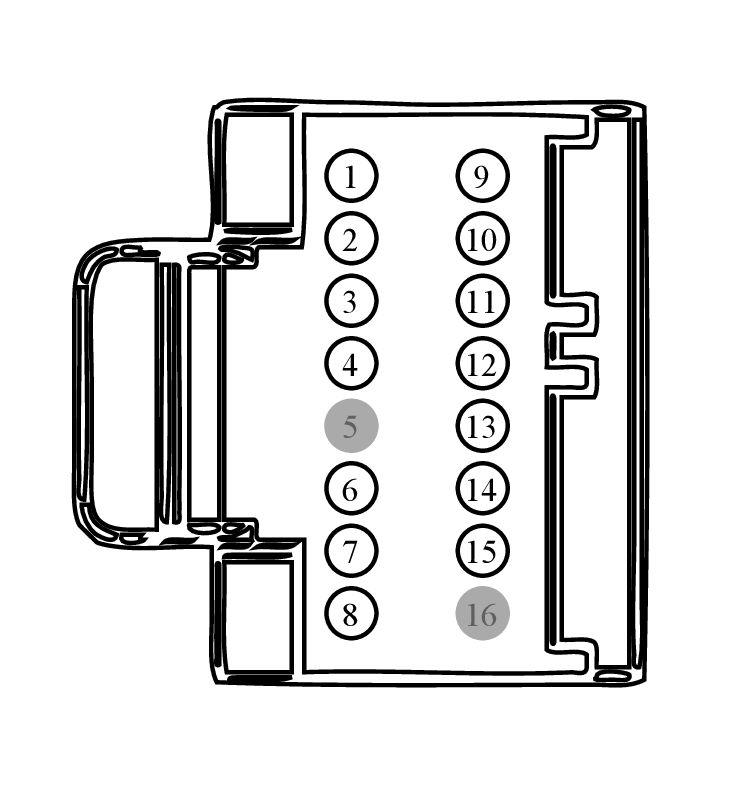

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C220	INSTRUMENT PANEL CLUSTER (IPC)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RMC33 (WH-VT)	22	CTRL MOD. - SENSOR FUEL LEVEL 2	9U5T-14474-DB
2	RMC32 (GN-BU)	22	CTRL MOD. - SENSOR FUEL LEVEL	9U5T-14474-DB
3	GD216 (BK-VT)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-DB
4	CET52 (GN-WH)	22	SWITCH - TRANSMISSION PARK DETECT	9U5T-14474-DB
5	*	*	Not Used	N/A
6	CCA15 (YE-GY)	22	SWITCH - IVD/TCS DISABLE	9U5T-14474-DB
7	CET59 (GY-VT)	22	SWITCH - HILL DESCENT CONTROL	9U5T-14474-DB
8	SBP13 (GY-RD)	18	FUSE - 13 OR CIRCUIT BREAKER	9U5T-14474-DB
9	VMC23 (GN-OG)	22	SENSOR - FUEL LEVEL 2 (FLI)	9U5T-14474-DB
10	VMC11 (YE-VT)	22	SENSOR - FUEL LEVEL (FLI)	9U5T-14474-DB
11	CMC20 (VT)	22	SWITCH - LOW LEVEL WASHER FLUID	9U5T-14474-DB
12	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	9U5T-14474-DB
13	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	9U5T-14474-DB
14	CCF22 (BU-OG)	22	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE HIGH INDICATOR LAMP (4WDH_IL)	9U5T-14474-DB
15	CCF06 (BU-GN)	22	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE LOW INDICATOR LAMP (4WDL_IL)	9U5T-14474-DB
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Instrument Cluster
Module - Seat Memory
Module - Upfitter Interface
Radio - Amplifier
